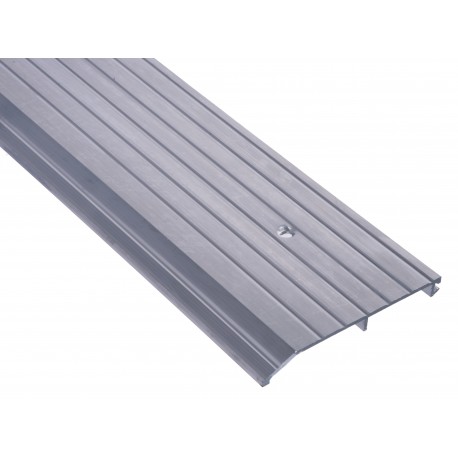

NGP 350 Half Saddle Threshold

350

$19.75

?

Details: NGP 350 Half Saddle Threshold

Features

  • Aluminum alloy 6063, T5 temper
  • 5" wide × 1/2" tall
  • Fluted top
  • ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
  • Designed for thermal break. Bumper seal not available
  • Typical wall thickness .110"
  • Weight: .83 lbs./ft.
  • #10 × 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
  • Mill finish

Options

  • Slip resistant SIA finish

Standards

  • ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.

Downloads

NGP LEED Recycled Content Percentage Chart

Available Model Numbers and Combinations

Model/SKU Attributes
350-12 Mill Aluminum
350-24 Mill Aluminum
350-36 Mill Aluminum
350-48 Mill Aluminum
350-60 Mill Aluminum,
350-72 Mill Aluminum
350-84 Mill Aluminum,
350-96 Mill Aluminum,
350-108 Mill Aluminum,
350BR-12 Bronze
350BR-24 Bronze
350BR-36 Bronze
350BR-48 Bronze
350BR-60 Bronze,
350BR-72 Bronze

View All Model Numbers and Options
