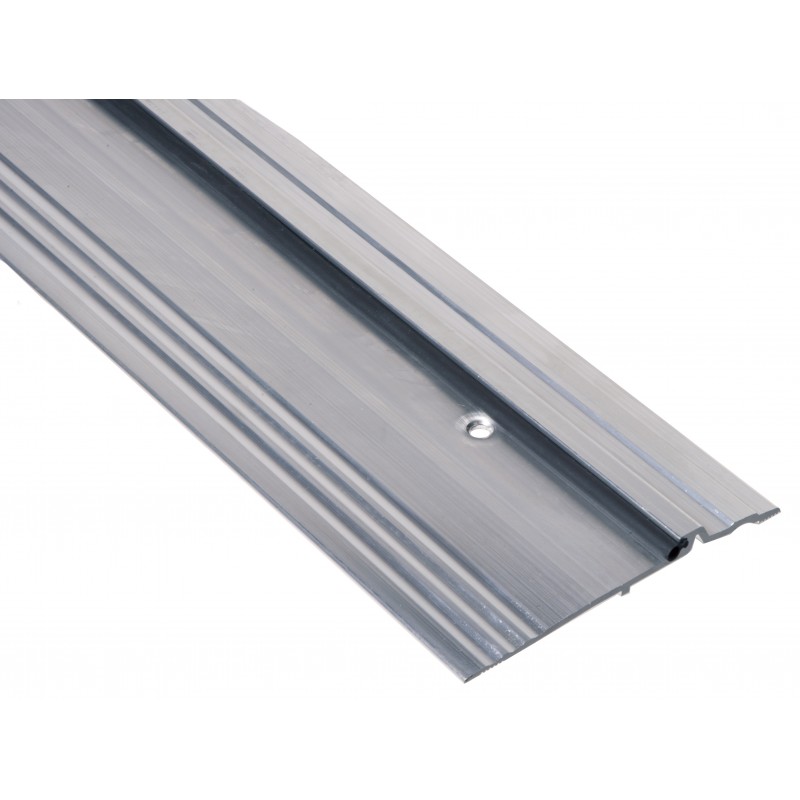

NGP 896N ADA Compliant Mill Aluminum Bumper Threshold

896N

This product is currently not available for sale, please contact us for more information.

$17.53

Details: NGP 896N ADA Compliant Mill Aluminum Bumper Threshold

Features

  • Aluminum alloy 6063, T5 temper
  • 5" wide × 1/2" tall
  • Fluted top
  • Typical Wall Thickness: .105"
  • Weight: .64 lbs./ft.
  • #10 × 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
  • NGP-TPV bumper seal is black
  • Mill finish

Options

  • Slip resistant SIA finish

Standards

  • ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
  • AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Downloads

NGP LEED Recycled Content Percentage Chart

Available Model Numbers and Combinations

Model/SKU Attributes
896N-12 12"
896N-24 24"
896N-36 36"
896N-48 48"
896N-60 60"
896N-72 72"
896N-84 84"
896N-96 96"
896N-108 108"
