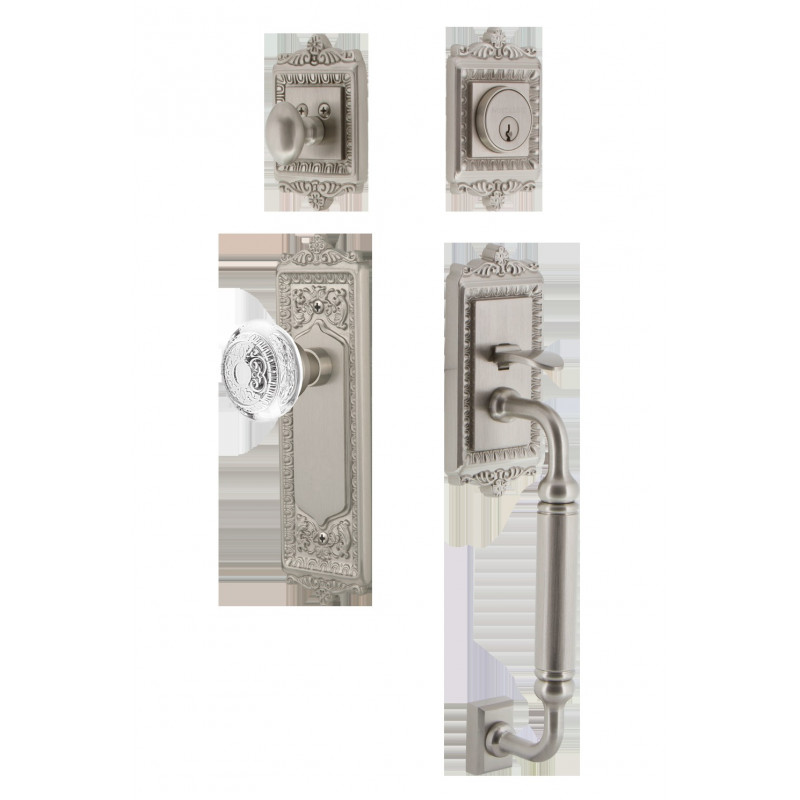

Nostalgic Warehouse EADCED_C Grip Egg & Dart Plate C Grip Entry Set w/ Crystal Egg & Dart Knob


755586

$393.75

?

Details: Nostalgic Warehouse EADCED_C Grip Egg & Dart Plate C Grip Entry Set w/ Crystal Egg & Dart Knob

With its distinctive repeating border detail, as well as floral crown and foot, the Egg & Dart Exterior Handleset resonates grand style. All Nostalgic Warehouse handlesets are mounted on a solid (not plated) forged brass base for durability and beauty.

Exterior and interior trim deadbolt, deadbolt latch and kit, exterior and interior trim handleset, handleset latch and kit, screws to install and two keys.

  • Solid forged brass for fine detail
  • Complete set for one door (both sides)
  • Perfect for restoration and easy to install on modern pre-drilled doors
  • Hand assembled in USA
  • 5-year warranty
Design Code
EADCGRCED
Collection
Egg & Dart
Category
Entry Set
ADA Rated
NO
Finishes Available
Satin Nickel, Lifetime Brass, Timeless Bronze, Antique Pewter, Antique Brass
Material
Brass/Crystal
Door Handing
Non-handed
Backset Options
2-3/8", 2-3/4"
Assembled In
Yes
Assembled Depth (1.75" door thickness)
1.28"

Dimensions

Grip Center to Center
8.46
Long Plate Height
6
Long Plate Width
2.62
Knob Diameter
2
Projection
3
Cross Bore
2.125"
Door Thickness
1 3/4" - 2"
Max Height
17.11"
Max Width
2.625"
Thumb Turn Diameter
1.375"
Thumb Turn Projection
1.55"
Edge Bore Hole Diameter
1"
Door Bore Hole Diameter
2.125"
Strike Height
2.25"
Strike Width
1"
Deadbolt Throw Length
1"

Shipping

Box Size
3-3/8" × 5-3/8" × 14-1/4"
Shipping Weight
6.5 lbs

Available Model Numbers and Combinations

Model/SKU Attributes
EADCGRCED 70 KD SN 238 Satin Nickel, Keyed Different,
EADCGRCED 70 KD TB 238 Keyed Different, Timeless Bronze,
EADCGRCED 70 KA TB 238 Keyed Alike, Timeless Bronze,
EADCGRCED 70 KD AP 238 Keyed Different, Antique Pewter,
EADCGRCED 70 KA AP 238 Keyed Alike, Antique Pewter,
EADCGRCED 70 KA SN 238 Satin Nickel, Keyed Alike,
EADCGRCED 70 KD LB 238 Lifetime Brass, Keyed Different,
EADCGRCED 70 KA LB 238 Lifetime Brass, Keyed Alike,
EADCGRCED 70 KD AB 238 Keyed Different, Antique Brass,
EADCGRCED 70 KA AB 238 Keyed Alike, Antique Brass,
