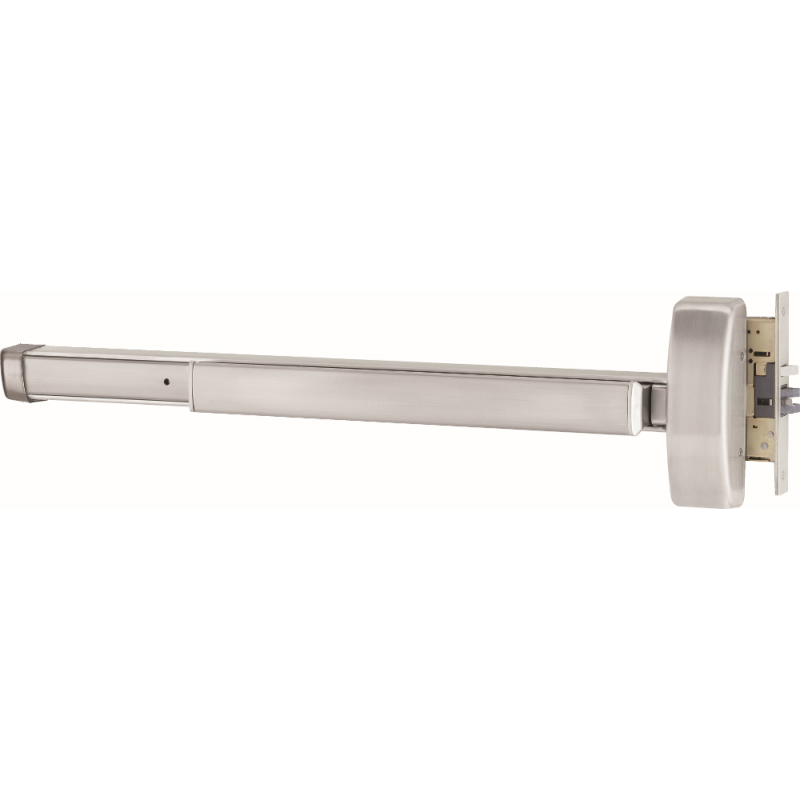

Details: Precision E2303 Electric Mortise Exit Device - Handed, Wide Stile

Features

Doors

For all types of single and double door applications. Available for 1-3/4" thick, up to 4-0" wide opening. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

Device

Covers ANSI A115.1 (Type 86) Mortise Lock preparation.

Double Cylinder

Handed, "10" Function available. Requires one rim type cylinder and one 1-1/4" long mortise type cylinder, not furnished standard.

Base Material

The Cover, Touchbar, Device Channel, Lock/ Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis

Investment Cast Steel, Zinc Dichromated.

Dogging

1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Touchbar Height

39-15/16" from floor standard.

Top Strike

No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Handed

Specify hand when ordering as RHRB or LHRB. Touchbar Assembly, Mortise Lock and Trim may be reversed in the field. For reversibility of complete device, mortise strike is required for the other hand.

UL Listed

Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 33. Conforms to UL10C and UBC 7-2.

ANSI/BHMA

Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes

605, 606, 612, 613, 625, 626W, 628, 630

Cylinders

Mortise type, not furnished standard.

Retrofit Applications

The 2300 and FL2300 Series Devices are designed to retrofit into other manufacturers' mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix "R" (e.g. 2308 R4908A). Consult factory for details.

Backset

2-3/4"

Exit Series

Handed Fits doors machined per ANSI A115.1 (Type 86) Mortise Lock preparation.

Case

Wrought Steel, Zinc Dichromate finish.

Lock Front Plate

8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.

Latchbolt

Stainless Steel, Deadlocking, 3/4" throw, anti-friction.

Guardbolt

Stainless Steel, sliding type.

Finishes

LOCK FRONT PLATE and STRIKE 605, 606, 612, 613, 622, 625, 630, 690. 630 furnished for 626 and 628 locks.

Strikes

No. S982, handed curved lip strike furnished standard.

Lock No. M303

01, 02 & 03 functions.

Lock No. M308

05, 08, 14 & 15 functions.

Lock No. M310

10 function.
