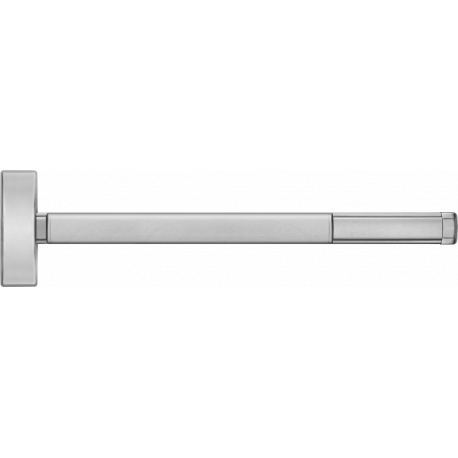

Precision E2803 Concealed Vertical Rod Electric Exit Device - Reversible, Wide Stile
Details: Precision E2803 Concealed Vertical Rod Electric Exit Device - Reversible, Wide Stile
Precision E2803 Apex Concealed Vertical Rod Electric Exit Device - Reversible, Wide Stile (Device Only)
Features
Doors
For all types of metal single and double door
applications. Available for 1-3/4" thick, up to 4'-0" wide
by 10-0 high openings. For thicker doors, consult factory.
Furnished standard for 1-3/4" thick, 3'-0" wide by 6'-8" to
8'-0" high openings.
Functions
Functions are field selectable. The device is
furnished for a desired function if specified. If not specified
the "03" function is furnished standard.
Base Material
The Cover, Touchbar, Device Channel,
Lock/Hinge Side Filler and End Cap are furnished of heavy
wrought Brass, Bronze or Stainless Steel. US28 Devices are
furnished with Aluminum, Brass, Bronze and Stainless Steel
components. See "Base Material and Finish Chart" on page
3.
Chassis
Lock Stile Assembly - Investment Cast Steel,
Zinc Dichromated.
Vertical Rods
Steel, plated. Top Rod is adjustable from 6'-8"
to 8'-0" or from 8'-1" to 10'-0". Additional
adjustments are available through the lock front filler.
Steel plated, independent action 5/8" throw,
with adjustment range to suit 3/4" door undercut.
Center Chassis
Steel plated, heavy wrought Steel
Assembly with lock in place Top and Bottom Latch
Adjustors. Adjustment accessible through the door after
installation.
Bottom Strike
No. S460, Flush mounted, Steel, Black
Powder Coated.
Dogging
1/4" turn hex key dogging standard.
NOT available on Fire Exit Hardware.
Touchbar Height
39-15/16" from floor standard. Specify
required height if other than standard.
Reversible
Reversible for all functions and trims.Standard
packaging RHRB.
UL Listed
Panic and Fire Exit Hardware. For FIRE EXIT
HARDWARE Ratings see page 33. Conforms to UL10C and
UBC 7-2.
ANSI/BHMA
Devices are BHMA certified for ANSI 156.3,
Grade 1.
Finishes
605, 606, 612, 613, 622, 625, 626W, 628, 630, 690
Cylinders
Rim Type, not furnished standard. Specify
when required. For cylinder details see page 19.
Stile Width
See Stile Information on page 36.
Less Bottom Rod (LBR) Option
Specify suffix "LBR" (e.g.
2808LBR). See UL FIRE LABEL RATING chart on page 33. Fire
Rated Devices include FB277 Fire Bolt Assembly. For Fire
Bolt Assembly image see page 35.
