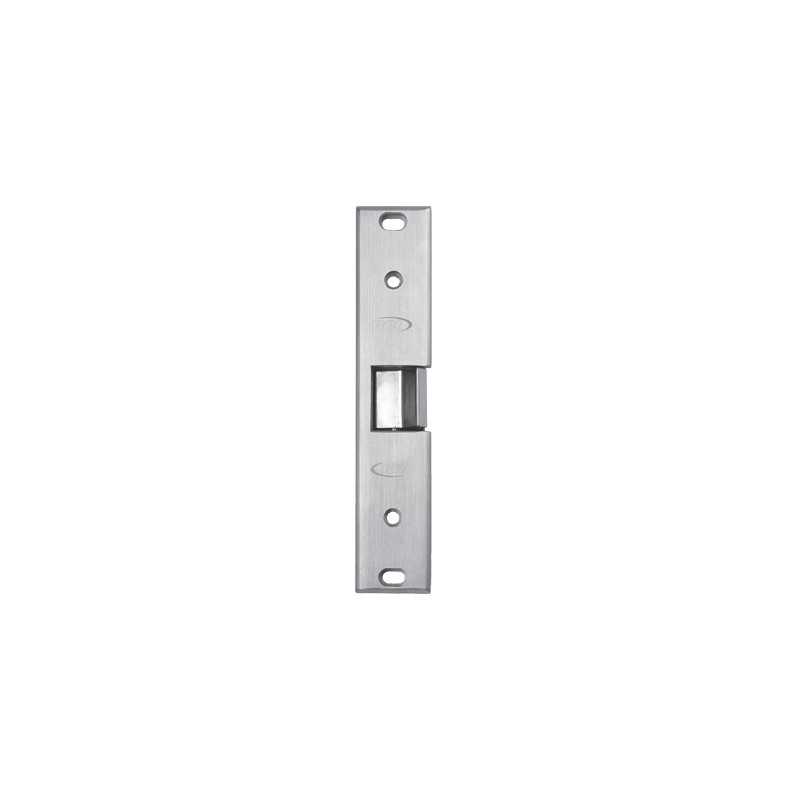

RCI 0161 0 Series 3/4" Semi-Mortise Rim Strike

$391.00

Details: RCI 0161 0 Series 3/4" Semi-Mortise Rim Strike

Rci 0161 Rim Strike For Use With Rim Exit Devices With Pullman Latch

STANDARD FEATURES:

  • For Hollow Metal, Aluminum or Wood Frames
  • UL Listed to 1500 lbs. of static strength
  • Universal design accommodates most manufacturers' exit devices
  • The 1⅝" deep electrical insert* may be horizontally adjusted after final installation to correct door misalignments without altering the original faceplate location
  • Extensive horizontal adjustment
  • Accommodates ½" to ¾" Pullman latch projection
  • Fully reversible (non-handed)
  • 12VAC/DC or 24VAC/DC
  • 32D Brushed Stainless Steel finish
  • UL 1034 burglary resistant Listed

Specifications

AC = Alternating Current
DC = Direct Current
Intermittent Duty = Energized less than 1 min with Duty Ratio 1:5
Continuous Duty = Energized 1 min. or more

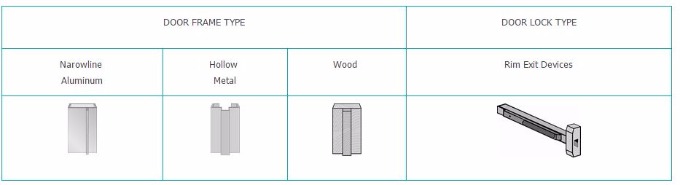

Door Type Frame & Door Lock Type

Specifications & Options

Strike Type
Rim Exit
Security
Fail Secure
Voltage
12VDC, 24VDC
Duty
Heavy Duty (Grade 1)
Door Frame
Aluminum, Wood, Hollow Metal
Monitoring
Latchbolt
Bolt Throw / Projection
3/4"
Rating
Fire-Rated

Available Model Numbers and Combinations

Model/SKU Attributes
0161 08 x 32D
0161 05 x 32D
