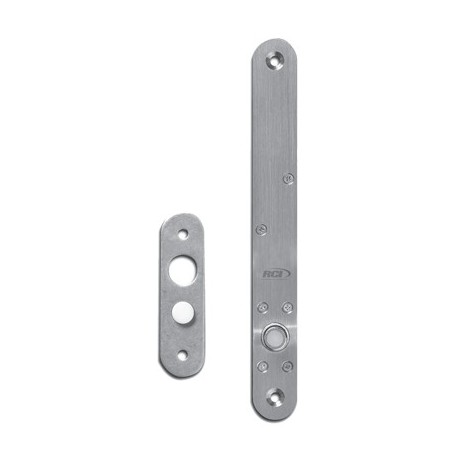

Details: RCI 3108/3308 Electric Deadbolts

STANDARD FEATURES

Narrow design to fit most door frames
Rugged stainless steel construction
Door Status Sensor for remote monitoring
Door position switch to ensure proper alignment before the bolt is extended
Request to Exit input for exit button or remote release
Built in sounder to let you know when door is released or held open
Bi-color LED to indicate lock status and delay period (remote mounted)
Programmable time delay settings for relock (0/3/6/10 sec.)
Available in 12-24VDC Fail Locked (FL) or Fail Unlocked (FUL) versions

Specifications

Insert Dimensions with faceplate
1⅜"D × 8¼"H × 1"W
(35.0mm D × 209.6mm H × 25.4mm W)

Strike Plate Dimensions with Magnet
¼"D × 3⅝"H × 1"W
(6.5mm D × 91.7mm H × 25.4mm W)

Bolt Dimensions
½" Diameter × 9⁄16" throw
(12.7mm Diameter × 14.5mm throw)

Operating Voltage
12-24VDC

Mode of Operation
Fail Unlocked 3308
Fail Locked 3108

DSS Output
COM, NO, NC Door Status Sensor, Max 0.2AMP @ 3VDC

Current Consumption
for 12VDC In Rush: 1.15A Normal: 0.25A /
for 24VDC In Rush: 0.62A Normal: 0.14ALED
Purple Wire: COM
Blue Wire: RED LED
Orange Wire: GREEN LED

Request to Exit Input
NO, momentary contact. Bolt will remain retracted as long as Brown Wire and Yellow Wire are contacted

Relock Time Delay
0, 3, 6, or 10 sec

Operating Temperature
14° to 104°F (-10° to 40°C)

Bi-Color LED Status

Extend Successfully

: Green blinks every 5 seconds
Wait for Extend: Red blinks fast
Delay Period: Red blinks slowly
Wait for Delay: Start Red on (B Setting only)
Bolt Remains Retracted: Red/Green blinks alternately

Sounder Status

Extend Successfully

: Beep! Beep!.
Extend Fail: Beep!...Beep! 10 Seconds
Retract Successfully: Beep!

RCI Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
3108	3108
3308	3308
