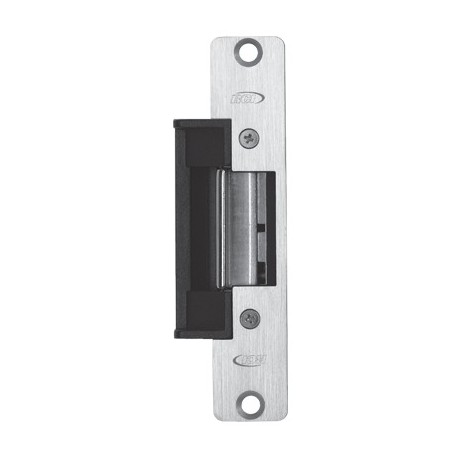

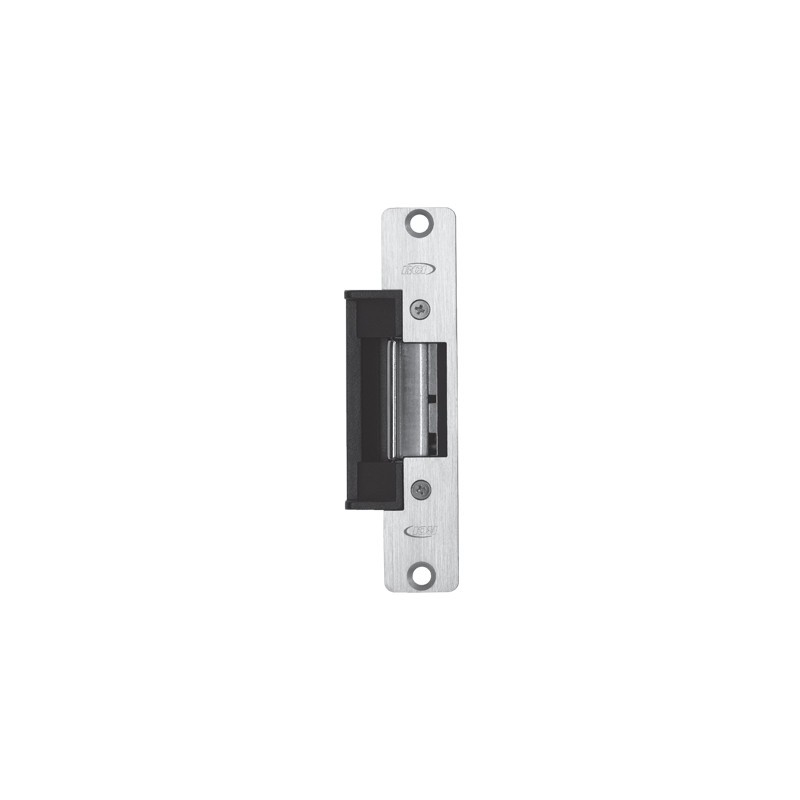

RCI 4 Series Centerline Strike

$275.03

Details: RCI 4 Series Centerline Strike

Features

  • Accommodates ¾" latch projection (pullman design not included)
  • Enlarged latch cavity width allow compatibility with cylindrical, narrowline aluminum and centerline mortise locks (including 3-piece anti-friction type) and mortise exit devices
  • Unique anti-vibration design prevents manipulation by vibration
  • 1½" cut-out depth accommodates most aluminum and wood frame profiles
  • Use with wide range of door thicknesses (1⅜" to 2⅜")
  • AC/DC input acceptable for fail locked models. Fail unlocked mode requires DC
  • Non-Handed
  • Standard mounting tabs, fasteners, and trim plate included

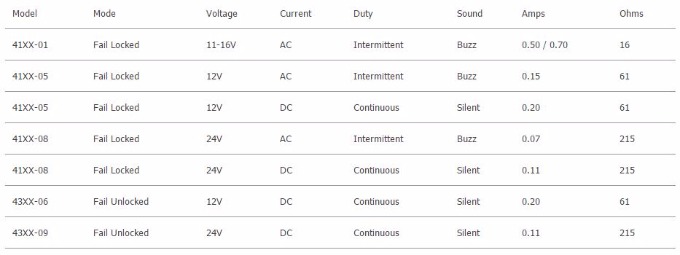

Specification

  • Fail Locked = Fail Secure = FL
  • Fail Unlocked = Fail Safe = FUL
  • AC = Alternating Current Intermittent Duty
  • DC = Direct Current Continuous Duty
  • Intermittent Duty = Energized less than 1 min.
  • Continuous Duty = Energized 1 min. or more. Duty Ratio 1:5

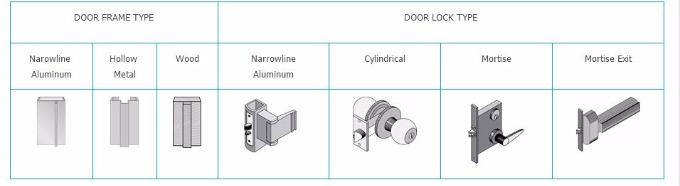

Door Frame Type , Door Lock Type

Specifications & Options

Strike Type
Mortise
Security
Fail Safe, Fail Secure
Voltage
12VDC
Door Frame
Aluminum
Monitoring
Latchbolt
Position
Centerline
Bolt Throw / Projection
3/4"
