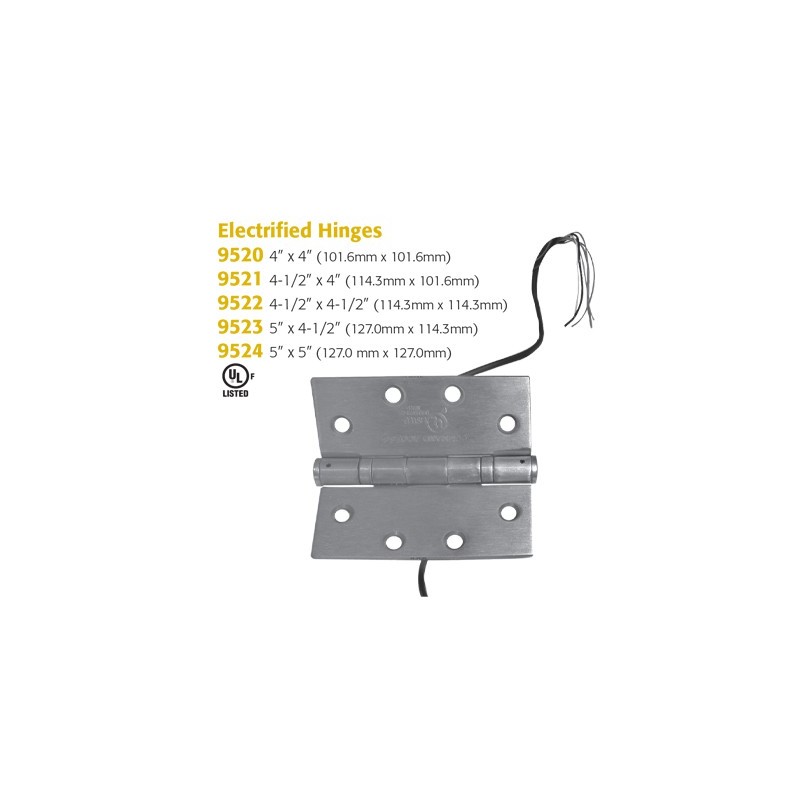

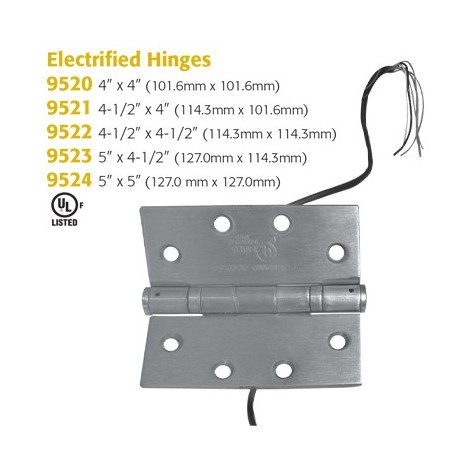

Details: RCI 952 Electrified Hinges

Standard Features

• 5-Knuckle Ball Bearing (2+4 wire)
• Standard Weight
• UL-F Fire Labeled
• 4' lead Included
• Center located wire access holes for easy installation
• Non-conductive wire access cap for added wire protection
• Available in Brushed Chrome (26D) or Brushed Stainless (32D) finish for exterior applications

Specifications

Model

Mounting 9520 / 9521 /
9522 / 9523 /
9524Mortise

Door Status

Type

Ratings

Material

Finish

No

5-knuckle Ball Bearing (2 + 4 Wire)

2 cond. @ 20 ga./4.0A @ 24V 4 cond. @ 26ga/1.0A @ 24V

Steel

26D or 32D

NOTE: It is recommended that preparation for wires, etc, for all surface-mounted models be done on-site. Conduits supplied by others.

Finish
26D - Brushed Chrome
32D - Brushed Stainless

Dimensions

• 9520 - 4"x 4" (101.6mm x101.6mm)
• 9521 - 4½"x 4" (114.3mm × 101.6mm)
• 9522 - 4½"x 4½" (114.3mm × 114.3mm)
• 9523 - 5" × 4½" (127.0mm × 114.3mm)
• 9524 - 5" × 5" (127.0mm × 127.0mm)

Certifications:

UL-F Fire Labeled

RCI Warranty
