RCI F1 Series F1114/F1119 Centerline Strikes
Model:
$592.00
Voltage
11-16VAC
12VAC/VDC
24VAC/VDC
Faceplate
1-1/4"W x 4-7/8"H (32mm x 124mm), ANSI Square Corner
1-3/8"W x 9"H (34mm x 229mm), Square Corner
Details: RCI F1 Series F1114/F1119 Centerline Strikes
Standard Features
"Saddle-Mount" housing design for enhanced strength and durability
Accommodates ½" (12.7mm), ⅝" (15.9mm), or ¾" (19.1mm) latch projection (Pullman design not included)
Horizontal adjustment (up to ¼" or 6.4 mm) relieves side-load pressure, ensuring proper latch alignment
Unique "Anti-Vibration" design prevents manipulation by vibration
Heavy-duty solid cast stainless steel housing design (32D)
Crossed wires are not a problem, as coil is not polarity sensitive
Energy efficient coil design
Internally mounted solenoid for easier installation
Non-handed for right or left-hand doors
Standard mounting tabs, shims and fasteners included
Fire labeled - UL 10C (1½ hr.)
UL 1034 Burglary-resistant (highest level): Static Strength: 1500 lbs., Dynamic Strength: 70 ft. lbs.; Endurance rating: 250,000 cycles
Meets ANSI/BHMA A156.31 Grade 1
Fits frame cut-out for Folger Adam 712 (F1114) and 310-2 (F1119) and VonDuprin 6211(ANSI) (F1114) and 6215/6226 (F1119)
Fail-locked (fail secure) mode standard
Specification
Frame Type & F
Specifications & Options
Strike Type
Mortise, Cylindrical
Security
Fail Secure
Voltage
12VDC, 24VDC
Duty
Heavy Duty (Grade 1)
Door Frame
Aluminum, Wood, Hollow Metal
Monitoring
Latchbolt
Bolt Throw / Projection
1/2" (Pullman), 3/4"
Rating
Fire-Rated
RCI Warranty

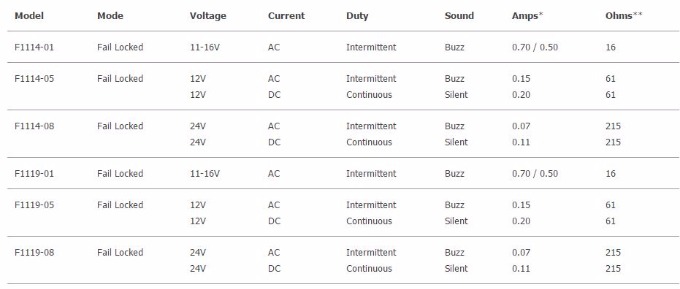

Available Model Numbers and Combinations
Model/SKU
Attributes
F1114-08
F1114-01
11-16VAC
F1119-01
11-16VAC
F1114-05
12VAC/VDC
F1119-05
12VAC/VDC
F1119-08
