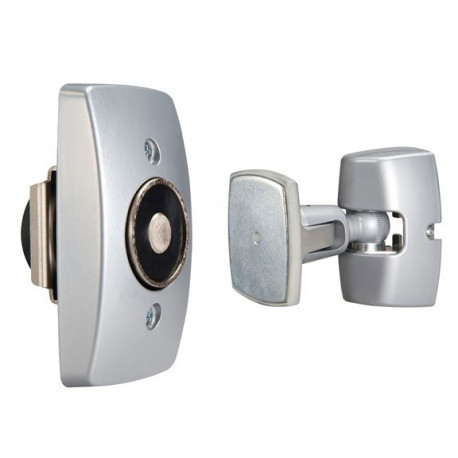

Details: Rixson 994M Wall Mounted Adjustable Armature Electromagnetic Door Holder

The 994M electromagnetic door holder is a wall-mounted unit with adjustable armature and concealed wiring, recommended for solid wood doors.

Features

• Wall mount
• Adjustable armature
• Concealed wiring
• Total projection: 3-3/4"
• Adjustable armature rotation up and down, back and forth for better alignment
• Cannot be used with 900 base or spacers
• Can be used without adjustment piece making it a model 997M
• Mounting requirements: 2" × 4" × 2-1/2" outlet box
• Wall must be properly reinforced and outlet box adequately fastened
• Tri-volt (120VAC, 24VAC/DC, 12VDC)
• 25-40 lbs. holding force
• For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC

Benefits

• Adjustable armature rotation up and down, back and forth for better alignment
• Doors remains open unless electromagnetic holder is released by alarm or smoke detector
• Fail safe operation; power failure releases door to close

Specifictions

Mounting Style

Wall Mounted

Wiring Installation

Concealed

Certifications

ANSI/BHMA A156.15, Grade 1, UL-cUL Fire-Rated Up to 3 Hours

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Downloads

• Catalog
• Installation Instructions
