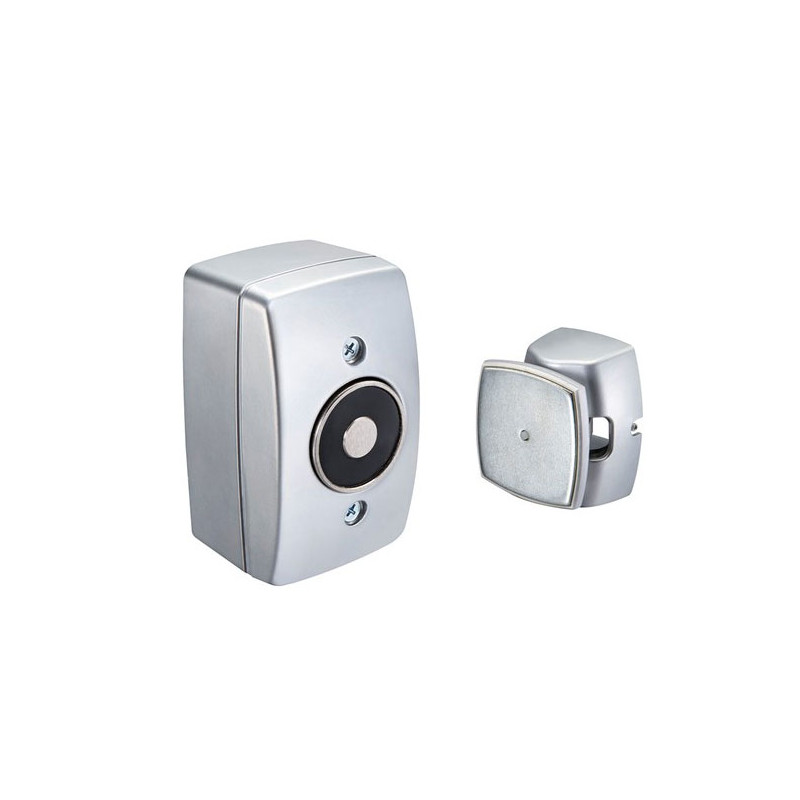

Details: Rixson 996/994/980 Triple Voltage Door Holders (12VDC, 24VAC / DC and 120VAC)

Electromagnetic Door Holder/releases

Triple Voltage Door Holders (12Vdc, 24Vac/dc And 120Vac)

Model 996

Application

• Wall Mount
• Surface Wiring
• ANSI/C00011

Product Description & Features

• Total Projection: 4⅛" (105mm)
• Mounting Requirements: 1½" (38mm) deep adapter housing
• Wall must be properly reinforced

Technical Information

Voltage and Current

120VAC, 60Hz., .020 amp/24VAC/DC, 60Hz., .020 amp/12VDC, .040 amp

For 50-55 lbs. of holding force, specify voltage

120VAC, 60Hz .017 amp/24VAC, 60Hz .080 amp/24VDC, .068amp/12VDC, .180amp/240VAC, 50⁄60Hz. .009 amp

Shipping Weight

3 lbs. (1.4 kg)

Model 994

Application

• Wall Mount
• Adjustable Armature
• Concealed Wiring
• ANSI/C00011

Product Description & Features

• Total Projection: 3¾" (95mm)
• Adjustable armature rotation up and down, back and forth for better alignment.
• Cannot be use with 900 base or spacers.
• Can be used without adjustment piece making it a model 997
• Mounting Requirements: 2" × 4" × 2½" (51 × 102 × 64mm) outlet box
• Wall must be properly reinforced and outlet box adequately fastened

Technical Information

Voltage and Current

120VAC, 60Hz., .020 amp/24VAC/DC, 60Hz., .020 amp/12VDC, .040 amp

For 50-55 lbs. of holding force, specify voltage

120VAC, 60Hz .017 amp/24VAC, 60Hz .080 amp/24VDC, .068amp/12VDC, .180amp/240VAC, 50⁄60Hz. .009 amp

Shipping Weight

2 lbs. (0.9 kg)

Model 980

Application

• Floor Mount
• Single Door
• ANSI/C00021

Product Description & Features

• Concealed Wiring
• Total Floor Space Required: 6⅝" (168mm
• Mounting Requirements: Conduit connects directly to floor plate

Technical Information

Voltage and Current

120VAC, 60 Hz., .020 amp/12VDC, .040 amp/24VAC/DC, 60 Hz., .020 amp

For 50-55 lbs. of holding force, specify voltage

120VAC, 60Hz .017 amp/24VAC, 60Hz .080 amp/24VDC, .068amp/12VDC, .180amp/240VAC, 50⁄60Hz. .009 amp

Shipping Weight

4 lbs. (1.8 kg)
