Sargent 268 Concealed Door Closer

268

$838.92

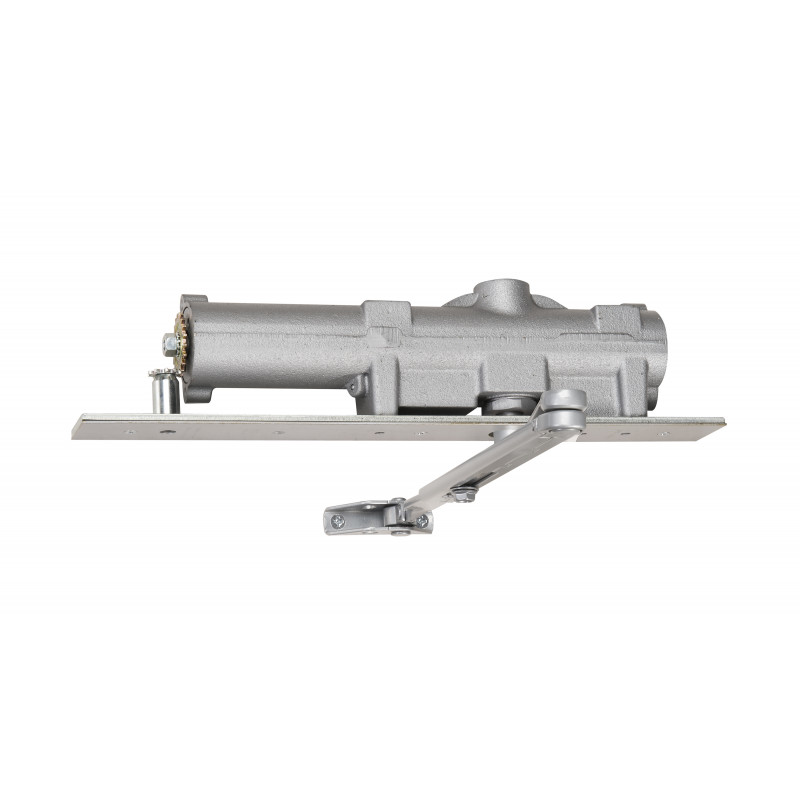

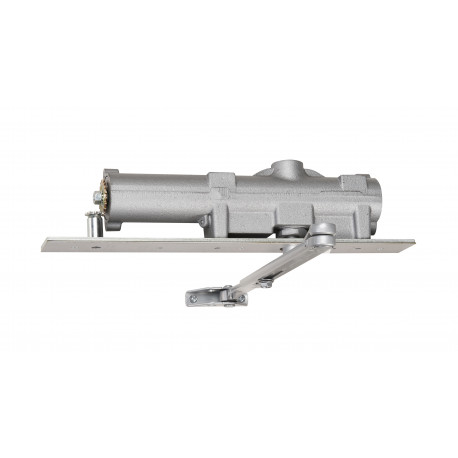

Details: Sargent 268 Concealed Door Closer

The 268 Series is a complete line of concealed closers for interior and exterior doors with quality and flexibility to meet virtually every application. When security is desired the concealed nature of the 268/269 closer provides a high degree of resistance to abuse since the arm, track and closer is completely concealed when the door is closed.

Features

  • Closer Spring adjustment: Determines the amount of force with which the door closes and the amount of force required to open the door.
  • Backcheck valve: Prevents the door from slamming into the door's stop and the valve is used to control the intensity of the backcheck
  • Delayed action valve (optional): Holds the open position momentarily
  • Closing speed valve: Controls how fast the door closes to approximately 8" from the closed position, along with the closer spring
  • Latching speed valve: Controls the speed of the door during the final 8" of door swing

Product Details for 268

  • Fully concealed closer body concealed in the frame head
  • Track fully concealed in door. Arm is only visible when door is open
  • 1-3/4" (44mm) min. door thickness
  • Arms are forged steel with bearing roller
  • Aluminum track
  • Metal closer faceplate furnished standard
  • Handed - Order the same hand as the door
  • Closing force adjustable 2 through 4
  • Closers are factory preset for 3' door width
  • Delayed action option available
  • Auxiliary door stop required

Aesthetics & Flexibility

  • Powder coated and plated finishes available to match SARGENT door trim
  • Concealed track, arm and closer
  • Closing force adjustable through a range of BHMA sizes
  • Optional hold open and bumper features available
  • All-weather fluid allows closer to operate properly in extreme cold and hot
  • environments without readjustment

Security

  • Heavy duty forged steel arm
  • Concealed in-frame design inhibits possible tampering
  • Security screws available
  • Concealed door position switch available
  • Pressure relief valves allow closer to absorb abusive forces, preventing damage to doors and frames

Strength & Durability

  • ANSI/BHMA Grade 1 (A156.4)
  • Conforms with Standard UL10C and UBC 7-2 for positive pressure fire test
  • UL and cUL listed for use on fire doors
  • 10 Year warranty
  • One piece cast iron body
  • 1-1/2" dia. piston for superior door control
  • Heat treated spindle and piston for years of reliable service
  • Captivated brass valves provide easy door control while preventing accidental valve removal

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Ideally Suited For

  • Heavy Duty Interior Applications
  • Schools maintaining 'cast iron' specs
  • Hospitals maintaining 'cast iron' specs

Available Model Numbers and Combinations

Model/SKU Attributes
268CSPx WSPx RH Concealed with Track, White Suede Powder Coat, Right Hand
268CSPx WSPx LH Concealed with Track, White Suede Powder Coat, Left Hand
268CSPSx 10BEx RH Single Pole Double Throw Door Position Switch, Oxidized Satin Bronze, Right Hand
268CSPSx 10BEx LH Single Pole Double Throw Door Position Switch, Oxidized Satin Bronze, Left Hand
268CSPSx EBx RH Single Pole Double Throw Door Position Switch, Bronze Sprayed or Powder Coated to match 10B, Right Hand
268CSPSx EBx LH Single Pole Double Throw Door Position Switch, Bronze Sprayed or Powder Coated to match 10B, Left Hand
268CSPSx EDx RH Single Pole Double Throw Door Position Switch, Black Powder Coated to match finish 20D, Right Hand
268CSPSx EDx LH Single Pole Double Throw Door Position Switch, Black Powder Coated to match finish 20D, Left Hand
268CSPSx ENx RH Single Pole Double Throw Door Position Switch, Aluminum Sprayed or Powder Coated, Right Hand
268CSPSx ENx LH Single Pole Double Throw Door Position Switch, Aluminum Sprayed or Powder Coated, Left Hand
268CSPSx EPx RH Single Pole Double Throw Door Position Switch, Bronze Sprayed or Powder Coated to match 10, Right Hand
268CSPSx EPx LH Single Pole Double Throw Door Position Switch, Bronze Sprayed or Powder Coated to match 10, Left Hand
268CSPSx EABx RH Single Pole Double Throw Door Position Switch, Brass Sprayed or Powder Coated, Right Hand
268CSPSx EABx LH Single Pole Double Throw Door Position Switch, Brass Sprayed or Powder Coated, Left Hand
268CSPSx BSPx RH Single Pole Double Throw Door Position Switch, Black Suede Powder Coat, Right Hand
