Reduced price! Sargent 269 Concealed Door Closers

Sargent

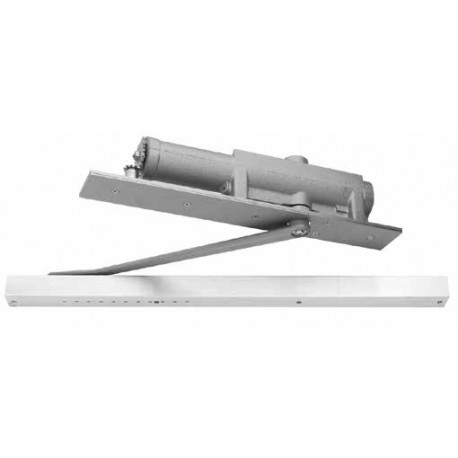

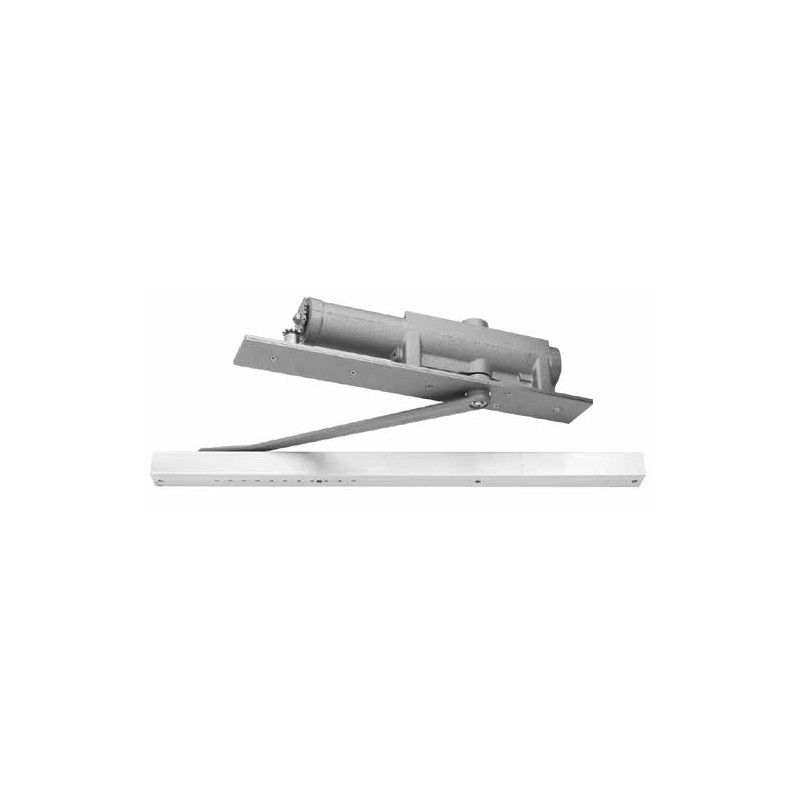

Sargent 269 Concealed Door Closer

269

$924.88

Details: Sargent 269 Concealed Door Closer

The 269 Concealed Door Closer provides exceptionally strong closing forces and is the ideal closer to use with heavy doors or exterior doors opening to 180°. This SARGENT closer combines a durable spring and the resilience of a Grade 1 product to offer lasting, dependable service where surface applied units may not be suitable.

Features

  • Specially designed spring to close heavy doors
  • Fully concealed closer body concealed in the frame head
  • Track fully concealed in door. Arm is only visible when door is open
  • 1-3/4" (44mm) min. door thickness
  • Arms are forged steel with bearing roller
  • Aluminum track
  • Metal closer faceplate furnished standard
  • Handed - Order the same hand as the door
  • Closing force adjustable from size 4 to 5
  • Delayed action option available
  • Auxiliary door stop required
  • Removable stop required for door widths under 2"

Strength & Durability

  • ANSI/BHMA Grade 1 (A156.4)
  • Conforms with Standard UL10C and UBC 7-2 for positive pressure fire test
  • UL and cUL listed for use on fire doors
  • 10 Year warranty
  • One piece cast iron body
  • 1-1/2" dia. piston for superior door control
  • Double heat treated spindle and piston for years of reliable service
  • Captivated brass valves provide easy door control while preventing accidental valve removal

Aesthetics & Flexibility

  • Powder coated and plated finishes available to match SARGENT door trim
  • Concealed track, arm and closer
  • Closing force adjustable through a range of BHMA sizes
  • Optional bumper features available
  • All-weather fluid allows closer to operate properly in extreme cold and hot
  • environments without readjustment

Security

  • Heavy duty forged steel arm
  • Concealed in-frame design inhibits possible tampering
  • Security screws available
  • Concealed door position switch available
  • Pressure relief valves allow closer to absorb abusive forces, preventing
  • damage to doors and frames

Ideally Suited For

  • Detention Institutions
  • Applications with a high degree of resistance to abuse

Available Model Numbers and Combinations

Model/SKU Attributes
269CSPx EBx RH Concealed with Track, Bronze Sprayed or Powder Coated to match 10B, Right Hand
269CSPx EBx LH Concealed with Track, Bronze Sprayed or Powder Coated to match 10B, Left Hand
269CSPx EDx RH Concealed with Track, Black Powder Coated to match finish 20D, Right Hand
269CSPx EDx LH Concealed with Track, Black Powder Coated to match finish 20D, Left Hand
269CSPx ENx RH Concealed with Track, Aluminum Sprayed or Powder Coated, Right Hand
269CSPx ENx LH Concealed with Track, Aluminum Sprayed or Powder Coated, Left Hand
269CSPx EPx RH Concealed with Track, Bronze Sprayed or Powder Coated to match 10, Right Hand
269CSPx EPx LH Concealed with Track, Bronze Sprayed or Powder Coated to match 10, Left Hand
269CSPx EABx RH Concealed with Track, Brass Sprayed or Powder Coated, Right Hand
269CSPx EABx LH Concealed with Track, Brass Sprayed or Powder Coated, Left Hand
269CSPx BSPx RH Concealed with Track, Black Suede Powder Coat, Right Hand
269CSPx BSPx LH Concealed with Track, Black Suede Powder Coat, Left Hand
269CSPx WSPx RH Concealed with Track, White Suede Powder Coat, Right Hand
269CSPx WSPx LH Concealed with Track, White Suede Powder Coat, Left Hand
269CSPSx 10BEx RH Single Pole Double Throw Door Position Switch, Oxidized Satin Bronze, Right Hand

View All Model Numbers and Options
