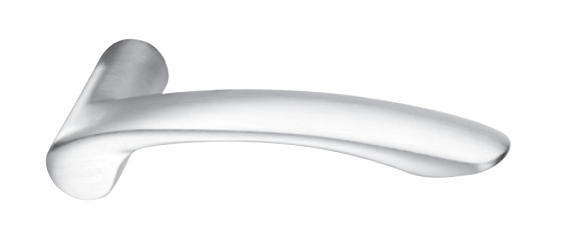

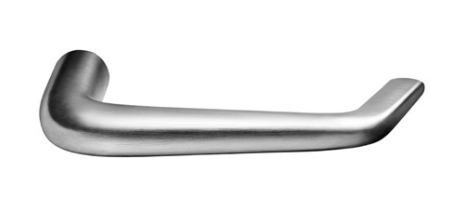

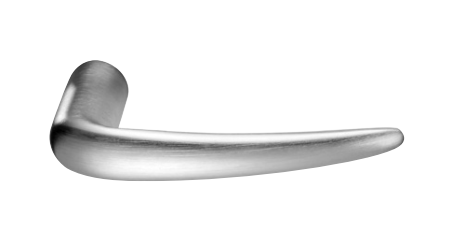

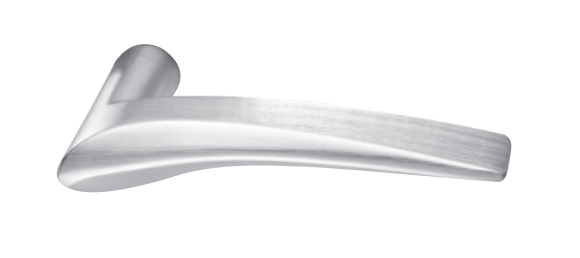

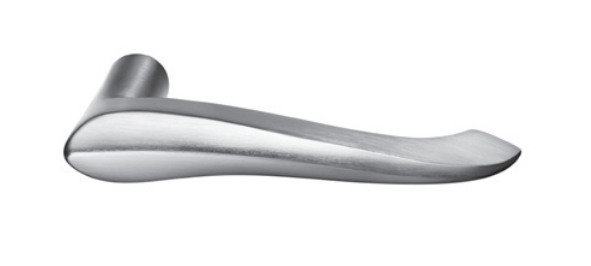

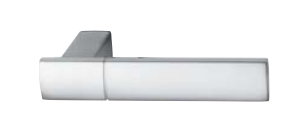

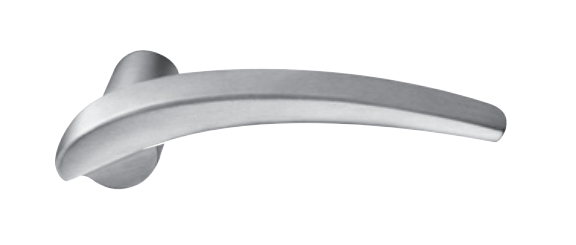

Sargent 9700 Series Surface Vertical Rod Exit Device w/ ET Control Trim & Standard, Coastal, Studio Lever
Details: Sargent 9700 Series Surface Vertical Rod Exit Device w/ ET Control Trim & Standard, Coastal, Studio Lever
The 90 Series exit device is ideal for historical preservation projects requiring additional security, with modular construction and few moving parts, the 90 Series exit device is maintenance-free and provides unsurpassed security for historical facilities.
Features
- Crossbar style rail design
- Can be masterkeyed or grand masterkeyed with any other SARGENT product
- Coordinates with variety of pull trims
- ADA Compliant
- ANSI/BHMA 156.3 Grade 2; A117.1 ANSI Accessibility Code
- UL Fire and Panic listed
Specifications
- Applications
- Single and double door
- For Doors
- Wood or metal. 1-3/4" (44.5mm) thick standard. 3" (76mm) minimum stile. Mounting
- Chassis Cover
- Brass, bronze or stainless steel
- Chassis
- Nonferrous alloy
- Crossbar
- 1" brass, bronze and stainless steel tubing. Specify 42- for reinforced cross bar .
- Hand
- Non Handed
- Dogging
- Standard Allen key dogging (Not available on fire rated devices)
- Latching
- Two point latching (top and bottom of the door). Top & bottom latchbolt projection adjustable through center case. Standard bottom latch compatible with latchtrack thresholds (by others)
- Strikes
- 646 top strike for panic & fi re and 624 bottom strike for panic & 655 bottom strike for fire
- Rod
- 1/2" brass, bronze or stainless steel
- Certification/ComplianceANSI
- ANSI/BHMA156.3 - 2014 Grade 1, ADA Compliant, UL Fire and Panic listed
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| 9773-24Vx ETMFx 04x RH | MF Aventura, Right Handed |
| 9773-24Vx ETMUx 09x LH | Left Handed |
| 9774-12Vx 04x LH | Left Handed |
| 9710x ETMZx 10BLx RH | Right Handed |
| 9774-12Vx ETMXx 04x RH | Right Handed |
| 976x ETMSx 10BLx RH | Key Operates ET, Right Handed |
| 9774-24Vx ETMMx 32Dx RH | Satin Stainless Steel, Right Handed |
| 9774-24Vx ETMHx 10Bx LH | MH Odeon, Left Handed |
| 976x ETEx 32Dx LH | Key Operates ET, E Lever, Satin Stainless Steel, Left Handed |
| 9710x ETSx 10Bx LH | Sanibel Lever, Left Handed |
| 9710x ETMDx 03x LH | MD Centro, Left Handed |
| 9710x ETMKx 10Bx LH | Left Handed |
| 9713x ETSx 03x LH | Key Outside Unlocks/locks Trim, Sanibel Lever, Left Handed |
| 9713x ETMOx 10Bx LH | Key Outside Unlocks/locks Trim, Left Handed |
| 9713x ETMKx 03x LH | Key Outside Unlocks/locks Trim, Left Handed |
