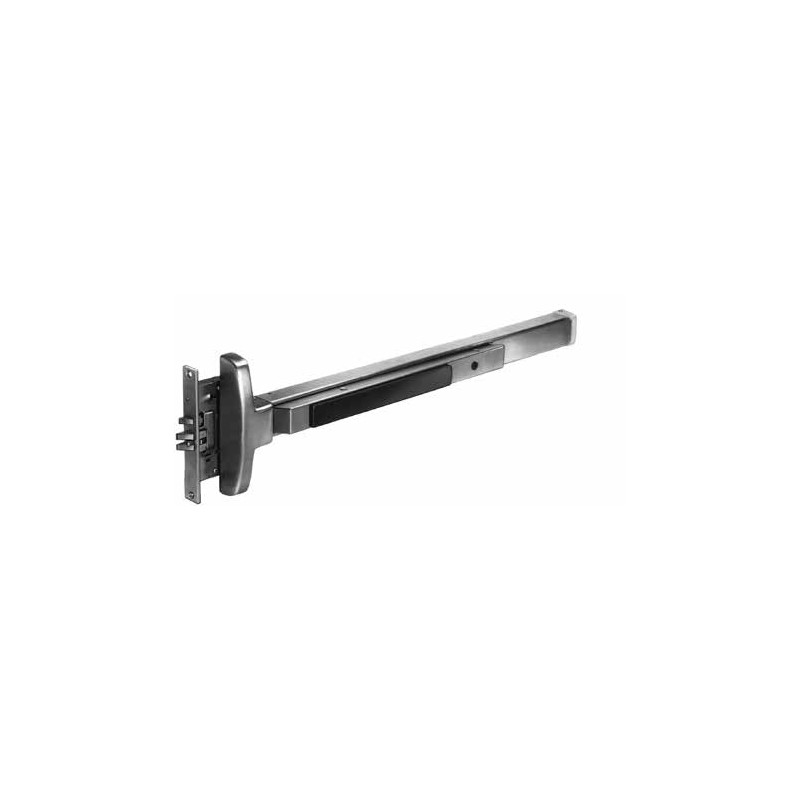

8313Fx ETH005x 04x RHR Series Narrow Design Mortise Lock Exit Device w/ ET Control Trim & Gramercy Lever
8313Fx ETH005x 04x RHR
- Function
- Key Locks/Unlocks Control
- Rail
- 33" to 36"
Details: 8313Fx ETH005x 04x RHR Series Narrow Design Mortise Lock Exit Device w/ ET Control Trim & Gramercy Lever
The 80 Series exit device is ideal for environments that require strong and durable security solutions. Made to last the lifetime of the building, this device easily exceeds ANSI/BHMA Grade 1 requirements for cycle and strength and is available in rim, mortise, surface vertical and concealed vertical rod configurations. With a modular design, this device has been crafted to be maintenance-free and provide unsurpassed security for any facility.
Features
- Designed for standard width stiles with a narrow design look
- Through-bolted trim for quiet operation and security
- Single door applications
- Double door applications with Mortise Lock × Vertical Rod Device
- UL10C (Fire) and UL305 (Panic) listed
- Devices are ANSI/BHMA A156.3 - Grade 1
- Notes for Two-tone finishes - 2930 Finish: grip of lever is 32D, balance of lever is 32. Rose/escutcheon and lock finish will be 32, 3029 Finish: grip of lever is 32, balance of lever is 32D. Rose/escutcheon and lock finish will be 32D
Specifications
- Door Type
- Wood or metal doors
- Door Thickness
- 1-3/4" (44mm) minimum thickness. Stile 4-1/2" (114mm) minimum stile width
- Rail sizes as determined by door Width
- E Rail for 24" to 32" door widths, No cutting required for 32" door, F Rail for 33" to 36" door widths, No cutting required for 36" door, J Rail for 37" to 42" door widths, No cutting required for 42" door, G Rail for 43" to 48" door widths, No cutting required for 48" door
- Strike
- C908 Standard Black Nylon Coated - ANSI Prep A115.1
- Dogging Feature
- Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (
- Mounting Fasteners
- Supplied standard with wood and machine screws
- Latch Bolt
- Brass Nickel Plated, 3/4" (19mm) throw, anti-friction
- Guarded/Deadlatch
- Brass, sliding type
- Device Centerline from Finished Floor
- 41" (1041 mm) for Standard Applications
- Center Case Dimensions
- 8-5/16" (211mm) × 1-1/16" (27mm)
- Projection
- Pushbar Neutral - 3" (76mm), Pushbar Depressed - 2-1/8" (54mm)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
56- Latch Retraction in Power Mode
56- Latch Retraction in Timer Mode
Unboxing a 59- Electroguard Delayed Egress Exit Device
59- Electroguard Diagnostic LEDs
How to Change the Function on a SARGENT ET Lever Trim
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| 8310Fx ETH007x 32Dx RHR | 33" to 36", |
| 8310Jx ETH009x 04x RHR | 37" to 42", |
| 8313Gx ETREMx 32Dx RHR | Key Locks/Unlocks Control, 43'' to 48", REM Gramercy, |
| 8374-12VGx ETRGMx 09x RHR | 43'' to 48", RGM Gramercy, |
| 8313Ex ETRASx 04x RHR | Key Locks/Unlocks Control, 24" to 32", RAS Gramercy, |
| 8313Ex ETH003x 32Dx RHR | Key Locks/Unlocks Control, 24" to 32", |
| 8374-12VGx ETH011x BSPx RHR | 43'' to 48", |
| 8313Fx ETH005x 04x RHR | Key Locks/Unlocks Control, 33" to 36", |
| 8313Jx ETH008x 32Dx RHR | Key Locks/Unlocks Control, 37" to 42", |
| 8374-12VGx ETH003x WSPx LHR | 43'' to 48", |
| 8315Gx ETH010x 04x RHR | Trim Always Operable, 43'' to 48", |
| 8315Ex ETRAMx 32Dx RHR | Trim Always Operable, 24" to 32", RAM Gramercy, |
| 8374-12VEx ETREMx 03x LHR | 24" to 32", REM Gramercy, |
| 8315Fx ETRAWx 04x RHR | Trim Always Operable, 33" to 36", |
| 8315Fx ETH004x 32Dx RHR | Trim Always Operable, 33" to 36", |
