8710Gx PTBMALx 09x RHR Surface Vertical Rod Exit Device

8710Gx PTBMALx 09x RHR

Function
Dummy Trim (Lever Rigid)
Rail
43'' to 48"
Lever
MAL Lever
Finish
Bright Bronze
Handing
Right Hand Reverse
edit options

$2,873.83

?

Details: 8710Gx PTBMALx 09x RHR Surface Vertical Rod Exit Device

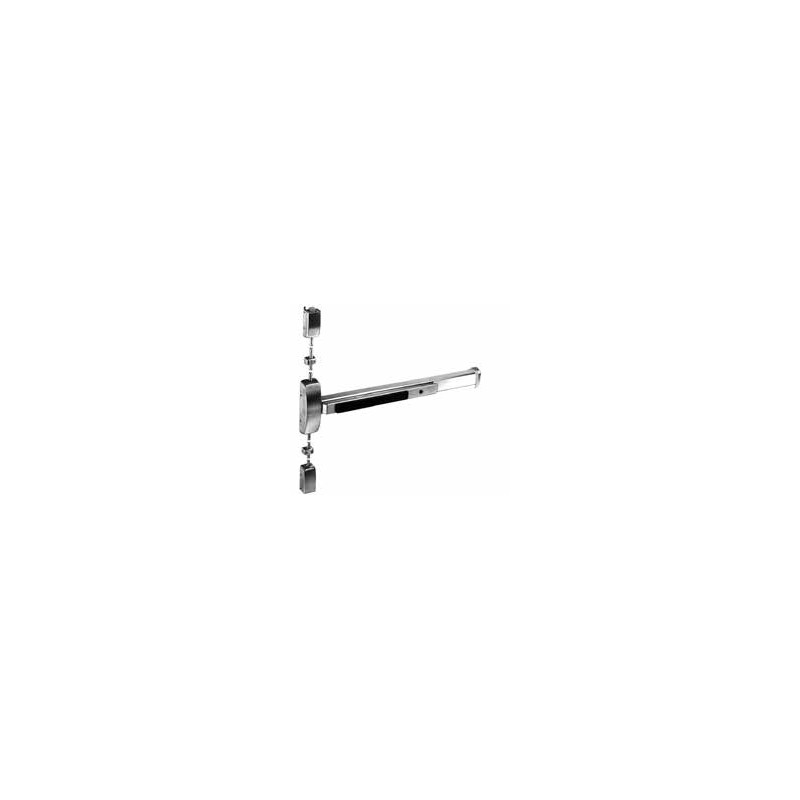

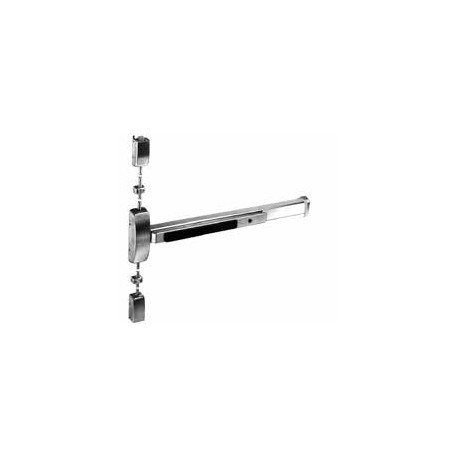

SARGENT manufactures a full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. The SARGENT 8700 Surface Vertical Rod Exit Device has two point latching (top and bottom of the door) and is adjustable through the center case

Features

  • Two point latching (top and bottom of door)
  • Top & bottom latchbolt projection adjustable through center case
  • Standard bottom latch compatible with latch track thresholds (by others)
  • Single and double door applications
  • Devices exceed ANSI A156.3 - Grade 1; tested to over 16 million cycles
  • UL Fire and Panic listed
  • Rods are 1/2" (13mm) brass, bronze or stainless steel

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire ratings of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Specifications

Door Types
Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
Door Widths
E Rail
24" to 32" (61cm to 81cm) No cutting required for 32" door;
F Rail
33" to 36" (84cm to 91cm) No cutting required for 36" door
J Rail
37" to 42" (94cm to 107cm) No cutting required for 42" door;
G Rail
43" to 48" (110cm to 122cm) No cutting required for 48" door
Strikes
646 Top Strike (Panic and Fire Rated), 624 Bottom Strike; 655 Fire Rated Bottom Strike
Dogging Feature
Hex key dogging standard; Cylinder dogging available (16-)
Mounting Fasteners
Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
Top and bottom bolt
Brass, Stainless Steel
Device Centerline from Finished Floor
41" (1041 mm) for standard applications
Center Case Dimensions
8-3/8" (213mm) × 2-5/8" (67mm)
Projection
Pushbar Neutral — 3" (76 mm); Pushbar Depressed — 2-1/8" (54 mm)
Door opening/height
must be specified (102" max door opening)

Available Model Numbers and Combinations

Model/SKU Attributes
8710Gx PTBMALx 04x RHR Dummy Trim (Lever Rigid), 43'' to 48", MAL Lever, Satin Brass, Right Hand Reverse
8710Jx PTBSTSx 32Dx RHR Dummy Trim (Lever Rigid), 37" to 42", STS Lever, Satin Nickel, Right Hand Reverse
8728Ex PTBFLLx 10BLx RHR Thumb Piece Always Operable, 24" to 32", FLL Lever, Oxidized Satin Bronze, Right Hand Reverse
8762Gx PTBMALx 04x RHR Key Operates Thumbpiece, 43'' to 48", MAL Lever, Satin Brass, Right Hand Reverse
8762Jx PTBSTSx 32Dx RHR Key Operates Thumbpiece, 37" to 42", STS Lever, Satin Nickel, Right Hand Reverse
8763Ex PTBFLLx 10BLx RHR Key Locks/Unlocks Thumb Piece, 24" to 32", FLL Lever, Oxidized Satin Bronze, Right Hand Reverse
8710Gx PTBMALx 04x LHR Dummy Trim (Lever Rigid), 43'' to 48", MAL Lever, Satin Brass, Left Hand Reverse
8710Jx PTBSTSx 32Dx LHR Dummy Trim (Lever Rigid), 37" to 42", STS Lever, Satin Nickel, Left Hand Reverse
8728Ex PTBFLLx 10BLx LHR Thumb Piece Always Operable, 24" to 32", FLL Lever, Oxidized Satin Bronze, Left Hand Reverse
8762Gx PTBMALx 04x LHR Key Operates Thumbpiece, 43'' to 48", MAL Lever, Satin Brass, Left Hand Reverse
8762Jx PTBSTSx 32Dx LHR Key Operates Thumbpiece, 37" to 42", STS Lever, Satin Nickel, Left Hand Reverse
8763Ex PTBFLLx 10BLx LHR Key Locks/Unlocks Thumb Piece, 24" to 32", FLL Lever, Oxidized Satin Bronze, Left Hand Reverse
8710Gx PTBMALx 09x RHR Dummy Trim (Lever Rigid), 43'' to 48", MAL Lever, Bright Bronze, Right Hand Reverse
8710Jx PTBSTSx BSPx RHR Dummy Trim (Lever Rigid), 37" to 42", STS Lever, Black Suede Powder Coat, Right Hand Reverse
8728Ex PTBFLLx 20Dx RHR Thumb Piece Always Operable, 24" to 32", FLL Lever, Statuary Dark Bronze, Right Hand Reverse

View All Model Numbers and Options
