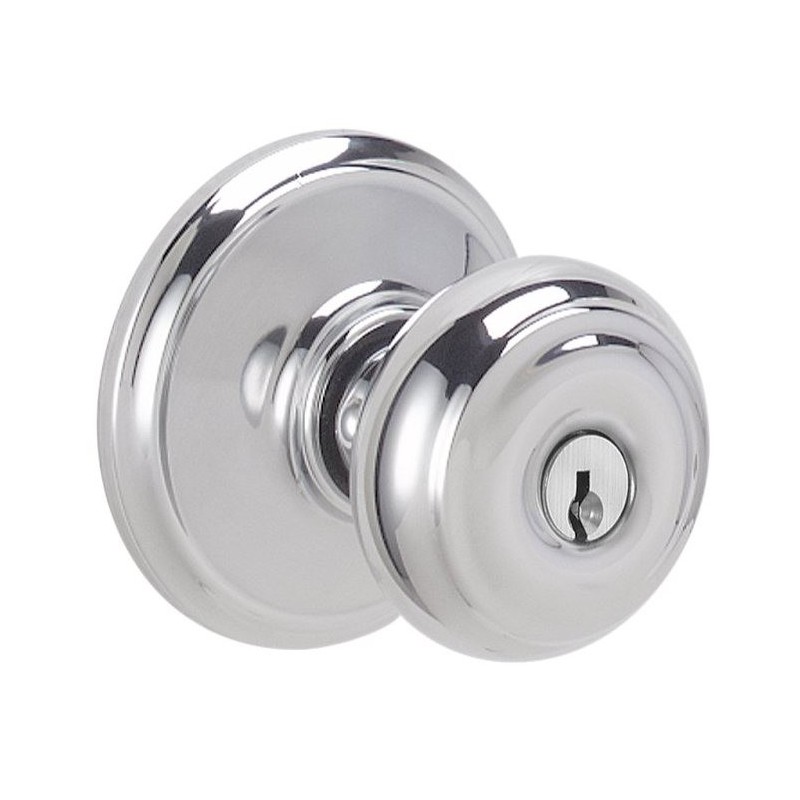

Schlage A79PD Communicating Door Knob Grade 2
Details: Schlage A79PD Communicating Door Knob Grade 2
The Schlage A79PD Communicating lock has a keyed knob on one side and a blank plate on the other side. The knob can be locked or unlocked using a key.
Specifications
- Handing
- Fully reversible.
- Door Thickness
- 1⅜" to 1⅞" (35 mm to 48 mm) standard.
- Backset
- 2¾"(70 mm) standard. 2⅜" (60 mm)
- Front
- Steel. 1⅛" × 2¼" square corner, beveled, for 2¾" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in/round face.
- Lock Chassis
- Steel, zinc dichromate plated for corrosion resistance.
- Latch Bolt
- Brass, chrome plated,½" throw, deadlocking on keyed and exterior functions.
- Exposed Trim
- Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
- Strike
- ASA strike 1¼" × 4⅞", square corner
- Cylinder & Keys
- 6-pin C keyway standard with two nickel silver keys per lock.
- Warranty
- three-year limited.
- ANSI Certification
- Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
A79PDORB626 A79PDORB605 A79PDORB609 A79PDORB619 A79PDORB625 A79PDORB643E A79PDORB606 A79PDORB625 A79PDORB613 A79PDORB630
A79PDPLY626 A79PDPLY605 A79PDPLY609 A79PDPLY619 A79PDPLY625 A79PDPLY643E A79PDPLY606 A79PDPLY625 A79PDPLY613 A79PDPLY630 A79PDPLY629
A79PDGEO626 A79PDGEO605 A79PDGEO609 A79PDGEO625 A79PDGEO606 A79PDGEO625 A79PDGEO613 A79PDGEO630
A79PDTUL626 A79PDTUL605 A79PDTUL609 A79PDTUL606 A79PDTUL625 A79PDTUL613
Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage A79PD Communicating Door Knob Grade 2 is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage deadbolt makes a great choice for commercial or residential applications.
The Schlage A79PD Communicating Door Knob Grade 2 is highly resistant to all abuse and use. With a variety of styles and functions to choose from these knobs are perfect for all situations.
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| A79PD TUL 605 KDBD | Bright Brass, (TUL) -Tulip, Keyed Different, 7 Pin (SFIC prep) |
| A79PD TUL 605 KDJD | Bright Brass, (TUL) -Tulip, Keyed Different, 6 Pin (IFIC prep) |
| A79PD TUL 605 KAPD | Bright Brass, (TUL) -Tulip, Keyed Alike, Schlage C |
| A79PD TUL 605 KABD | Bright Brass, (TUL) -Tulip, Keyed Alike, 7 Pin (SFIC prep) |
| A79PD TUL 605 KAJD | Bright Brass, (TUL) -Tulip, Keyed Alike, 6 Pin (IFIC prep) |
| A79PD TUL 605 MKPD | Bright Brass, (TUL) -Tulip, Master Keyed, Schlage C |
| A79PD TUL 605 MKBD | Bright Brass, (TUL) -Tulip, Master Keyed, 7 Pin (SFIC prep) |
| A79PD TUL 605 MKJD | Bright Brass, (TUL) -Tulip, Master Keyed, 6 Pin (IFIC prep) |
| A79PD TUL 630 KDPD | (TUL) -Tulip, Satin Stainless Steel, Keyed Different, Schlage C |
| A79PD TUL 630 KDBD | (TUL) -Tulip, Satin Stainless Steel, Keyed Different, 7 Pin (SFIC prep) |
| A79PD TUL 630 KDJD | (TUL) -Tulip, Satin Stainless Steel, Keyed Different, 6 Pin (IFIC prep) |
| A79PD TUL 630 KAPD | (TUL) -Tulip, Satin Stainless Steel, Keyed Alike, Schlage C |
| A79PD TUL 630 KABD | (TUL) -Tulip, Satin Stainless Steel, Keyed Alike, 7 Pin (SFIC prep) |
| A79PD TUL 630 KAJD | (TUL) -Tulip, Satin Stainless Steel, Keyed Alike, 6 Pin (IFIC prep) |
| A79PD TUL 630 MKPD | (TUL) -Tulip, Satin Stainless Steel, Master Keyed, Schlage C |
