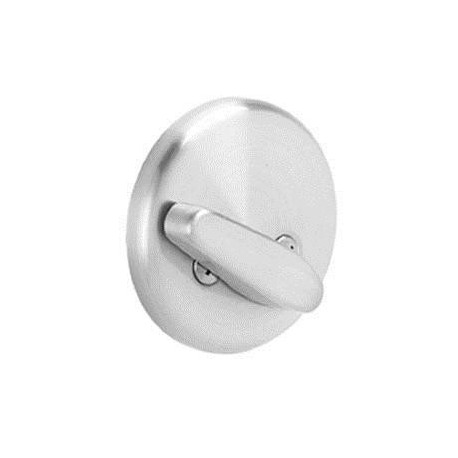

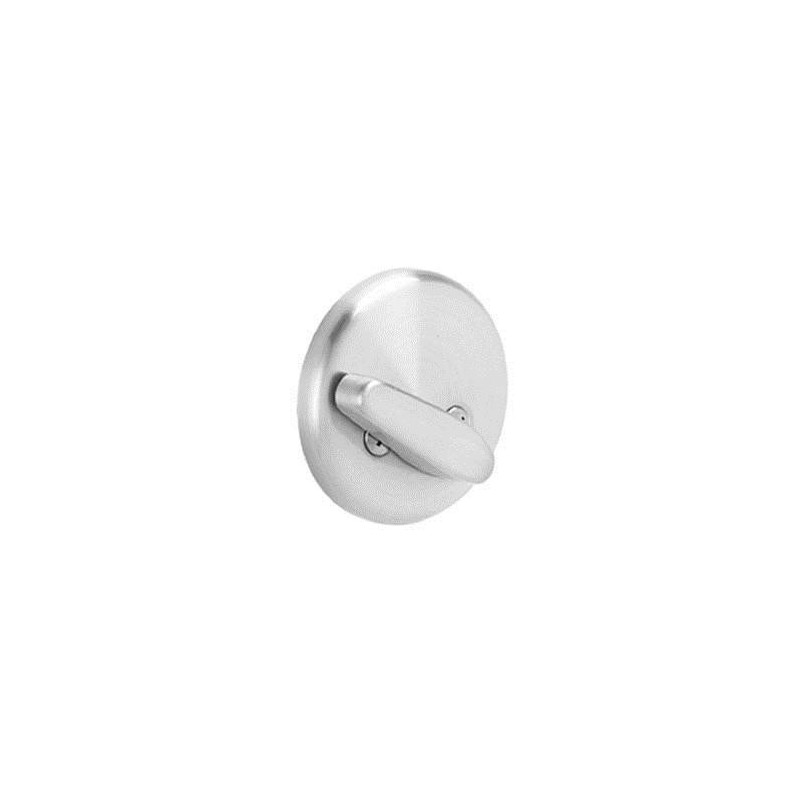

Schlage B580 Door Bolt
Details: Schlage B580 Door Bolt
The Schlage B580 is a keyless deadbolt operated by a thumbturn. There is no outside trim.
Specifications
Handing: Non-handed.
- Door Thickness:
- 13/8" to 13⁄4" thick (35mm to 44 mm) standard.
- Backset:
- B500-Series: Adjustable for 2⅜" (60mm) or 2¾" (70mm) standard.
- Front: Brass, bronze or stainless steel. 11⁄8" × 21⁄4" (29mm × 57mm) square corner, beveled.
- Dead Bolt: 1" (25 mm) throw with saw-resistant hardened steel insert.
- Latch Bolt: Brass, 9⁄16" (14mm) throw, deadlocking on keyed and exterior functions.
- Exposed Trim: Wrought brass, bronze or stainless steel.
- Thumbturn: Pressure cast zinc, plated to match finish symbols.
- Strike: 11⁄8" × 23⁄4", metal dust box reinforcer and three 3" screws. Optional strikes, lip lengths and ANSI strike box available.
- Certifications
- ANSI:
The B500 series meets or exceeds A156.5 Grade 2 strength and operational requirements. - Warranty:
Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage B580 Door Bolt is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage deadbolt makes a great choice for commercial or residential applications.
The perfect auxiliary deadbolt. The Schlage B580 Door Bolt adds extra protection to entrance doors, storage spaces, and common use areas.
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| B580 626 | Satin Chrome |
| B580 613 | Oxidized Satin Bronze |
| B580 605 | Bright Brass |
| B580 606 | Satin Brass |
| B580 609 | Antique Brass |
| B580 612 | Satin Bronze |
| B580 619 | Satin Nickel |
| B580 625 | Bright Chrome |
| B580 643e | Aged Bronze |
