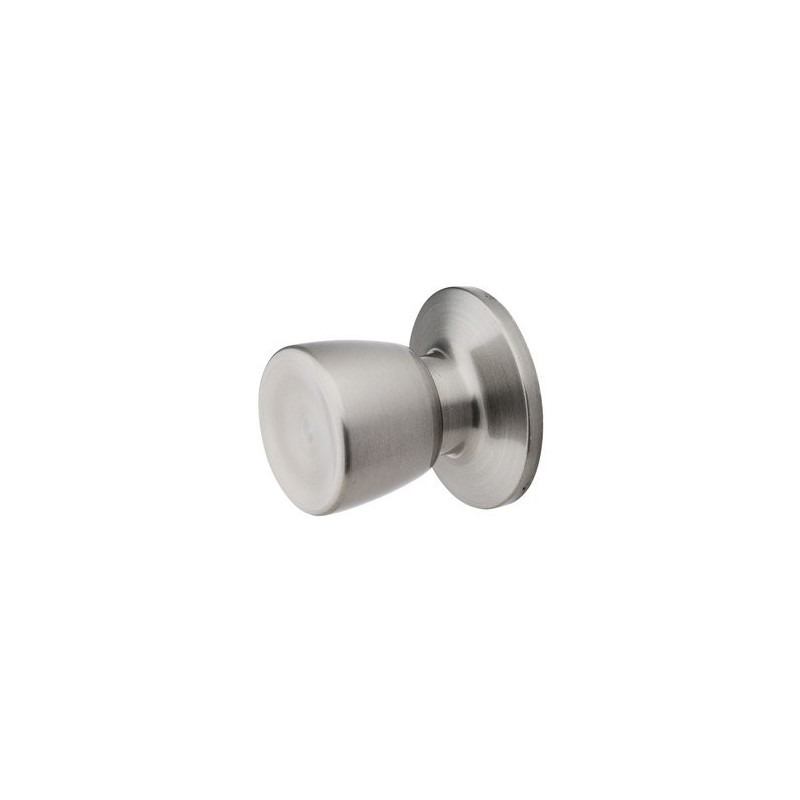

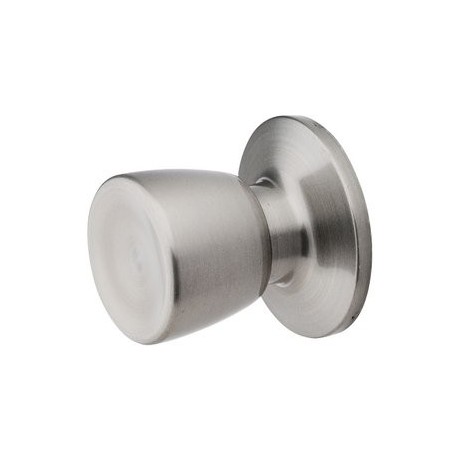

Schlage D53PD Entrance Knob Grade 1
Details: Schlage D53PD Entrance Knob Grade 1
The Schlage D53PD is an ANSI-certified Grade 1 Commercial Keyed Entry door knob. This lock operates using a keyed cylinder on the outside and a push/turn button on the inside. The door is unlocked when the button has not been pressed. Pressing the button locks the door until the next time it is opened either by key or by turning the inside knob; pressing and turning the button will require key for entry until the button is manually disengaged.
Specifications
- Door Thickness
- 1⅜" to 2" (35mm-51mm) standard.
- Backset
- 2¾" (70 mm) standard. 2⅜", 3¾" and 5" (60 mm, 95 mm, 127 mm) available by request.
- Faceplate
- Brass, bronze or stainless steel. 11⁄8" × 21⁄4" (29 mm × 57mm) square corner, beveled.
- Lock Chassis
- Steel, zinc dichromate plated for corrosion resistance.
- Latch Bolt
- Brass,½" (12mm) throw, deadlocking on keyed and exterior functions.
- Exposed Trim
- Wrought brass, bronze or stainless steel.
- Strike
- ANSI curved lip strike 11⁄4" × 4⅞" × 13⁄16"lip to center standard. Optional strikes, lip lengths and ANSI strike box available.
- Cylinder & Keys
- 6-pin Schlage C keyway standard with two patented nickel silver keys per lock.
- Warranty
- Three-year limited warranty.
Certifications
- ANSI: Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.
D53PDORB626 D53PDORB605 D53PDORB609 D53PDORB612 D53PDORB625 D53PDORB643E D53PDORB613
D53PDPLY626 D53PDPLY605 D53PDPLY609 D53PDPLY612 D53PDPLY625 D53PDPLY643E D53PDPLY613 D53PDPLY630
D53PDTUL626 D53PDTUL605 D53PDTUL609 D53PDTUL612 D53PDTUL625 D53PDTUL643E D53PDTUL613
Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage D53PD Entrance Knob Grade 1 is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage deadbolt makes a great choice for commercial or residential applications.
The Schlage D53PD Entrance Knob Grade 1 is made tough and built to last. These knobs are some of the toughest that Schalge produce.
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| D53PD ORB 643e KAPD | Aged Bronze, Orbit Knob, Keyed Alike, Schlage C |
| D53PD ORB 643e KABD | Aged Bronze, Orbit Knob, Keyed Alike, 7 Pin (SFIC prep) |
| D53PD ORB 643e KAJD | Aged Bronze, Orbit Knob, Keyed Alike, 6 Pin (IFIC prep) |
| D53PD ORB 643e MKPD | Aged Bronze, Orbit Knob, Master Keyed, Schlage C |
| D53PD ORB 643e MKBD | Aged Bronze, Orbit Knob, Master Keyed, 7 Pin (SFIC prep) |
| D53PD ORB 643e MKJD | Aged Bronze, Orbit Knob, Master Keyed, 6 Pin (IFIC prep) |
| D53PD TUL 612 KDPD | Satin Bronze, (TUL) -Tulip, Keyed Different, Schlage C |
| D53PD TUL 612 KDBD | Satin Bronze, (TUL) -Tulip, Keyed Different, 7 Pin (SFIC prep) |
| D53PD TUL 612 KDJD | Satin Bronze, (TUL) -Tulip, Keyed Different, 6 Pin (IFIC prep) |
| D53PD TUL 612 KAPD | Satin Bronze, (TUL) -Tulip, Keyed Alike, Schlage C |
| D53PD TUL 612 KABD | Satin Bronze, (TUL) -Tulip, Keyed Alike, 7 Pin (SFIC prep) |
| D53PD TUL 612 KAJD | Satin Bronze, (TUL) -Tulip, Keyed Alike, 6 Pin (IFIC prep) |
| D53PD TUL 612 MKPD | Satin Bronze, (TUL) -Tulip, Master Keyed, Schlage C |
| D53PD TUL 612 MKBD | Satin Bronze, (TUL) -Tulip, Master Keyed, 7 Pin (SFIC prep) |
| D53PD TUL 612 MKJD | Satin Bronze, (TUL) -Tulip, Master Keyed, 6 Pin (IFIC prep) |
