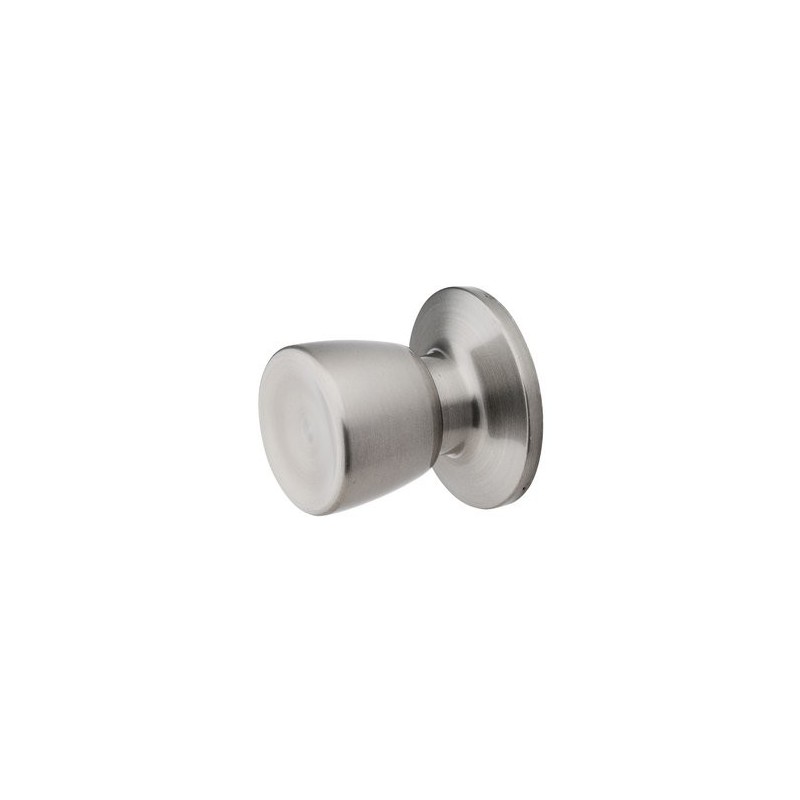

Schlage D60PD Vestibule Knob Grade 1
Details: Schlage D60PD Vestibule Knob Grade 1
The Schlage D60PD Vestibule Lock is an ANSI-certified Grade 1 heavy-duty lockset. The inside key locks and unlocks the outside knob. The inside knob is always unlocked for immediate exit. The outside knob can be opened with a key even if locked from the inside.
Specifications
- Door Thickness
- 1⅜" to 2" (35mm-51mm) standard.
- Backset
- 2¾" (70 mm) standard. 2⅜", 3¾" and 5" (60 mm, 95 mm, 127 mm) available by request.
- Faceplate
- Brass, bronze or stainless steel. 11⁄8" × 21⁄4" (29 mm × 57mm) square corner, beveled.
- Lock Chassis
- Steel, zinc dichromate plated for corrosion resistance.
- Latch Bolt
- Brass,½" (12mm) throw, deadlocking on keyed and exterior functions.
- Exposed Trim
- Wrought brass, bronze or stainless steel.
- Strike
- ANSI curved lip strike 11⁄4" × 4⅞" × 13⁄16"lip to center standard. Optional strikes, lip lengths and ANSI strike box available.
- Cylinder & Keys
- 6-pin C keyway standard with two patented nickel silver keys per lock.
- Warranty
- Three-year limited warranty.
D60PDORB626 D60PDORB605 D60PDORB609 D60PDORB612 D60PDORB625 D60PDORB643E D60PDORB613
D60PDPLY626 D60PDPLY605 D60PDPLY609 D60PDPLY612 D60PDPLY625 D60PDPLY643E D60PDPLY613 D60PDPLY630
D60PDTUL626 D60PDTUL605 D60PDTUL609 D60PDTUL612 D60PDTUL625 D60PDTUL643E D60PDTUL613
Certifications
- ANSI: Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.
Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage D60PD Vestibule/Classroom Security Knob Grade 1 is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage deadbolt makes a great choice for commercial or residential applications.
The Schlage D60PD Vestibule/Classroom Security Knob Grade 1 is made tough and built to last. These knobs are some of the toughest that Schalge produce.
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| D60PD PLY 626 KAJ | Satin Chrome, Plymouth Knob, Keyed Alike, Less FSIC |
| D60PD ORB 605 KDP | Bright Brass, Orbit Knob, Keyed Different, Conventional 6-pin cylinder, keyed 5 |
| D60PD PLY 626 MKP6 | Satin Chrome, Plymouth Knob, Master Keyed, Conventional 6-pin cylinder |
| D60PD PLY 626 MKP | Satin Chrome, Plymouth Knob, Master Keyed, Conventional 6-pin cylinder, keyed 5 |
| D60PD ORB 605 KDL | Bright Brass, Orbit Knob, Keyed Different, Less conventional cylinder |
| D60PD PLY 626 MKL | Satin Chrome, Plymouth Knob, Master Keyed, Less conventional cylinder |
| D60PD ORB 605 KDR | Bright Brass, Orbit Knob, Keyed Different, FSIC (Full size interchangeable core) |
| D60PD PLY 626 MKR | Satin Chrome, Plymouth Knob, Master Keyed, FSIC (Full size interchangeable core) |
| D60PD ORB 605 KDT | Bright Brass, Orbit Knob, Keyed Different, FSIC – Construction Core |
| D60PD PLY 626 MKT | Satin Chrome, Plymouth Knob, Master Keyed, FSIC – Construction Core |
| D60PD ORB 605 KDJ | Bright Brass, Orbit Knob, Keyed Different, Less FSIC |
| D60PD PLY 626 MKJ | Satin Chrome, Plymouth Knob, Master Keyed, Less FSIC |
| D60PD ORB 605 KAP6 | Bright Brass, Orbit Knob, Keyed Alike, Conventional 6-pin cylinder |
| D60PD PLY 625 KDP6 | Bright Chrome, Plymouth Knob, Keyed Different, Conventional 6-pin cylinder |
| D60PD PLY 625 KDP | Bright Chrome, Plymouth Knob, Keyed Different, Conventional 6-pin cylinder, keyed 5 |
