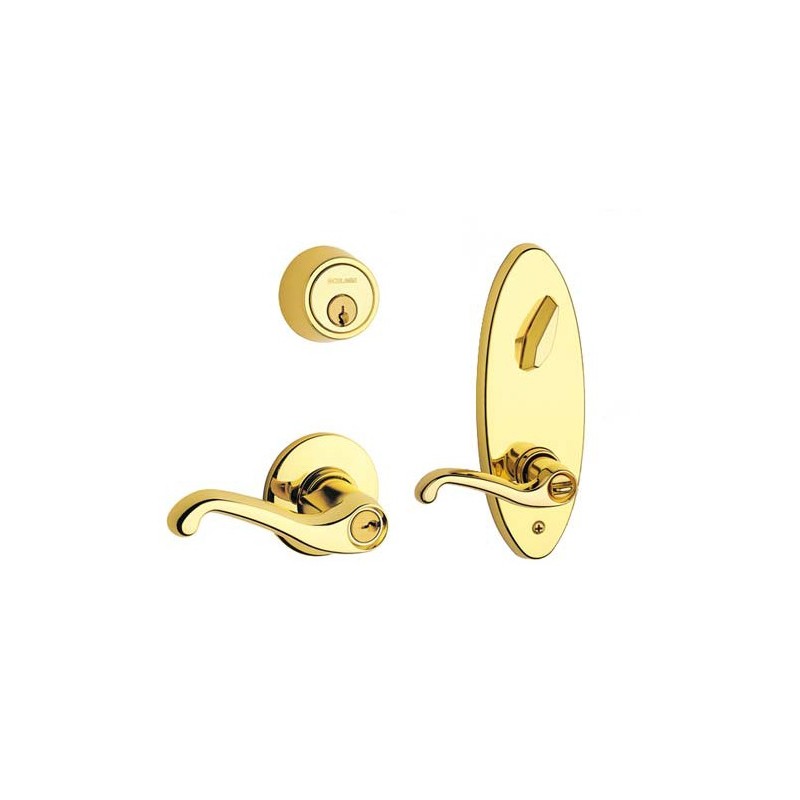

Schlage S200-FLA Flair Lever S200-Series Interconnected Lock
Door Handing
All Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Specifications
Handing: Not handed, except Flair design.
Door Thickness: 1⅜" to 2" (35 mm-51 mm).
Backset:2⅜" (60 mm) Standard, 2¾" (70 mm) and 5" (127 mm) available.
Fronts: Brass or bronze. 1⅛" × 2¼" (29 mm × 57 mm) square corner, beveled, for 2¾" backset standard.
For availability with specific backsets, see the catalog.
Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
Deadbolt: 1" (25 mm) throw with hardened steel roller, and 1" (25 mm) housings standard.
Latch Bolt: Brass, chrome plated,½" (13 mm) throw, deadlocking.
Exposed Trim: Levers are zinc base, plated to match finish symbols. Roses, escutcheons, latch faceplates and strikes are wrought brass or bronze.
Strike: T-strike 1⅛" × 2¾" (29 mm × 70 mm) × 1⅛" (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys:
Commercial: 6-pin patented Everest C123 keyway standard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: Three-year limited.
Residential: Full mechanical lifetime.
Certifications
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1⁄2? of door face.
UL / cUL:
All locks listed for A label single doors, 2' × 8'.
Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
The Schlage S200-Series Grade 2 Interconnected Lock - Flair Design is perfect for light to medium use on interior commercial doors, office tenant spaces, laboratories, heavy duty residential doors, and multi-family housing.
Model/SKU | Attributes |
---|---|
S280 J FLA 625 RH 16-482 10-026 KD | Bright Chrome, Right Handed, Keyed Different |
S280 J FLA 625 LH 10-027 KD | Bright Chrome, Left Handed, Keyed Different |
S280 J FLA 613 LH 16-482 KD | Oiled Rubbed Bronze, Left Handed, Keyed Different |
S251 J FLA 613 LH KD | Oiled Rubbed Bronze, Entrance, Double Locking, Left Handed, Keyed Different |
S210 P6 FLA 619 LH 16-482 10-027 MK | Satin Nickel, Entrance, Single Locking, Conventional 6-pin cylinder, Left Handed, Master Keyed |
S270 P6 FLA 613 RH 16-483 10-027 KD | Oiled Rubbed Bronze, Conventional 6-pin cylinder, Right Handed, Keyed Different |
S270 P FLA 613 RH MK | Oiled Rubbed Bronze, Conventional 6-pin cylinder, keyed 5, Right Handed, Master Keyed |
S210 P FLA 613 RH 16-482 10-026 MK | Oiled Rubbed Bronze, Entrance, Single Locking, Conventional 6-pin cylinder, keyed 5, Right Handed, Master Keyed |
S210 P FLA 613 LH 16-482 10-026 KA | Oiled Rubbed Bronze, Entrance, Single Locking, Conventional 6-pin cylinder, keyed 5, Left Handed, Keyed Alike |
S270 L FLA 605 RH 16-483 KA | Bright Brass, Right Handed, Keyed Alike |
S210 L FLA 625 LH MK | Bright Chrome, Entrance, Single Locking, Left Handed, Master Keyed |
S270 L FLA 609 LH 16-482 10-027 MK | Antique Brass, Left Handed, Master Keyed |
S270 L FLA 619 LH KA | Satin Nickel, Left Handed, Keyed Alike |
S210 R FLA 626 RH 16-482 10-026 MK | Satin Chrome, Entrance, Single Locking, FSIC, Right Handed, Master Keyed |
S210 R FLA 619 LH 16-482 10-026 KA | Satin Nickel, Entrance, Single Locking, FSIC, Left Handed, Keyed Alike |
