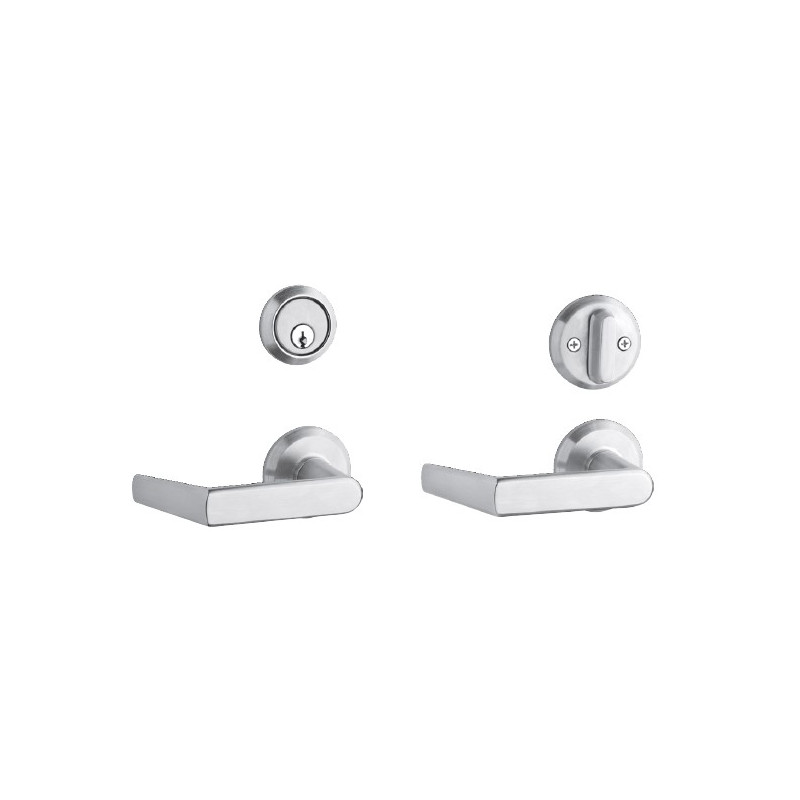

Details: Stanley QMS100 QMS122-626 E GA6 KD Series Grade 1 Heavy Duty Mortise Lock

Applications

• The heavy duty QML100 series mortise locks are designed for institutional and commercial uses such as educational, health care and industrial facilities where a long-lasting, highly durable product is required.

Performance Features

• Tested to exceed 2,000,000 cycles, surpassing the 1,000,000 required to meet Grade 1 certifcation.
• Patented clutching mechanism standard.
• Thru-Bolt design and heavy-duty spring tension provides longer performance life and prevents lever sag.
• ADA compliant thumbturn.
• Mortise case is easily field reversible.
• Pre-assembled trims with spring loaded spindles automatically adjust to door thickness and reduces installation time.
• Partial security seperator prevents spindle manipulation.
• Anti-friction throwbolt.

Certifications

• ANSI/BHMA A156.13 - Grade 1
• UL/cUL listed (3-hours) for "A" label single door applications (4'x8")
• UL10C/UBC 7-2 (1997) Positive Pressure Rated
• UL10B Pressure Rated
• ADA Compliant ANSI A117.1 Accessibility Code
• California State Reference Code (formerly Title 19 - Fire Marshall)

Product Specifications

• Solid forged brass trim construction.
• Dual 8mm spindles.
• 1" (25.4mm) stainless steel dead bolt.
• Floating mounting tabs adjust to door bevel.
• Toggle button locking.
• Heavy gauge steel armor face plate.
• Door Thickness - Sectional: 1 3?4"- 2" (44.5mm-51mm) standard; 2 1?4" (57mm) optional
  - Escutcheon: 1 3?4"- 2 1?4" (44.5mm-57mm) standard

Keying

• 6-pin or 5-pin Cylinders. Many keying options available from our factory to include, but not limited to, master keying, grandmaster keying, and construction keying. Small Format Interchangeable Core cylinder also available.
• 2 keys per lockset.
• Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, BF-Best "F" & LC-Less Cylinder
