> >>>>Lockey TB950 Magnum All-in-One Gate Closer & Hinge System for High-Use Gates 50-250 lbs.
Reduced price! Lockey TB950 Magnum All-in-One Gate Closer & Hinge System for High-Use Gates 50-250 lbs.

Lockey

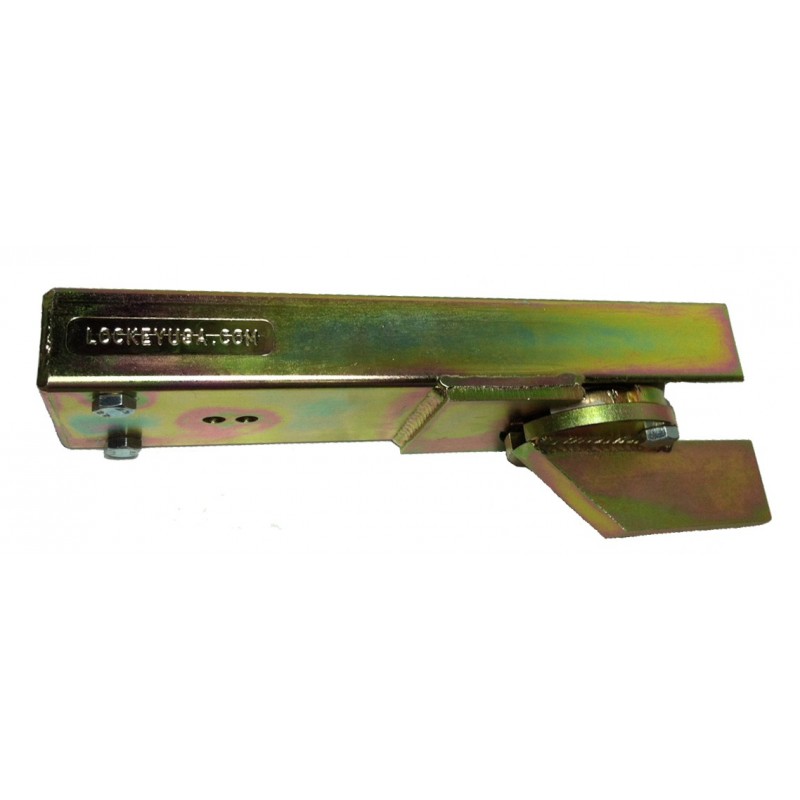

Lockey TB950 Magnum All-in-One Gate Closer & Hinge System for High-Use Gates 50-250 lbs.

TB950

$1,292.05

Details: Lockey TB950 Magnum All-in-One Gate Closer & Hinge System for High-Use Gates 50-250 lbs.

Features

  • All-in-one closer and hinge system
  • Self-closing
  • Concealed, high use, pedestrian gate closer
  • Tamper and vandal resistant
  • Closes gates weighing between 50-250 lbs.
  • Works with left and right hand gates
  • No hold open
  • Restrictor to avoid over opening
  • Speed adjustments hidden from view
  • 180 degree capable with 180 Drive Plate
  • Can be mounted on chain link with TB950-LINX

Specifications

Max. Gate Weight
50-250 lbs.
Max. Gate Width
48"
Max. Gate Height
78"
Max. Opening Angle
90 degrees, 180 degrees with 180 Drive Plate
Min. Operating Temperature
-40 degrees Fahrenheit
Max. Operating Temperature
122 degrees Fahrenheit
Type of Gate Material
Ornamental, Chain Link
Two speed adjustments
closing & latching
Material
Steel
Finish
Electro-galvanized

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads
