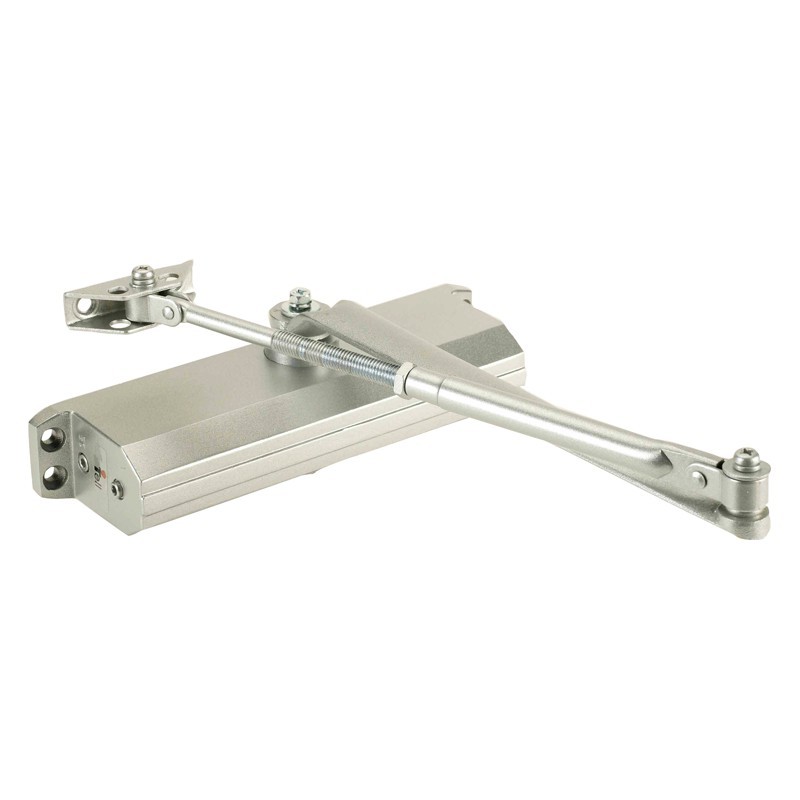

Value Brand 600 Series Heavy-Duty Grade 1 Surface Applied Door Closer
DC100
Performance | Complies with ANSI A156.4, Grade 1, 2 million cycles, UL listed |
---|---|
Chassis/Closer | Non-handed, cast aluminum, mounting to regular, top jamb or parallel arm applications |
Main Arm
Forged steel, accommodates reveals up to 3¼", adjustable extension arm |
Spring Power
Adjustable 1 - 4 and 3 - 6 sizes |
Backcheck
Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door |
Valves
Adjustable, independent, non-critical (sweep and latch), consistent
closing speeds
Fasteners
Compatible for aluminum, hollow metal and wood doors and frames |
Door Range
Up to 180 degrees |
Door Preparation
9-1⁄16" horizontal and ¾" vertical mounting hole locations (retrofits traditional closer) |
|
Warranty | 25 year limited |
Covers | High impact plastic and plated kit: cover, arm & bracket. |
Hold Open Arm | Forged steel with hold open adjustable from 80 to 135 degrees |
Sex Nuts
For 1⅜" or 1¾" thick doors |
Keyway: Schlage C 6-Pin (Other Keyway cylinders are available, please contact customer service if required) |
For the 600 SERIES Value Brand Heavy-Duty Commercial Grade 1 Surface Applied Closers make the 3 different styles: Cortland (CTL), Buckingham (BUC), Sturdee (STR), 3 separate products. |
Model/SKU | Attributes |
---|---|
DC10018 | Aluminum, Adjustable 1-4 (Interior No Cover) |
DC10045 | Duranodic, Adjustable 1-4 (Interior No Cover) |
DC100146 | Aluminum, Adjustable 3-6 (Interior No Cover) |
DC100229 | Duranodic, Adjustable 3-6 (Interior No Cover) |
DC100108 | Aluminum, Adjustable 1-4 (Interior Full Cover) |
DC100106 | Duranodic, Adjustable 1-4 (Interior Full Cover) |
DC100209 | Aluminum, Adjustable 3-6 (Exterior Full Cover) |
DC10044 | Duranodic, Adjustable 3-6 (Exterior Full Cover) |
DC10022 | Aluminum, Fixed Size 4 (No Cover) |
DC10048 | Duranodic, Fixed Size 4 (No Cover) |
