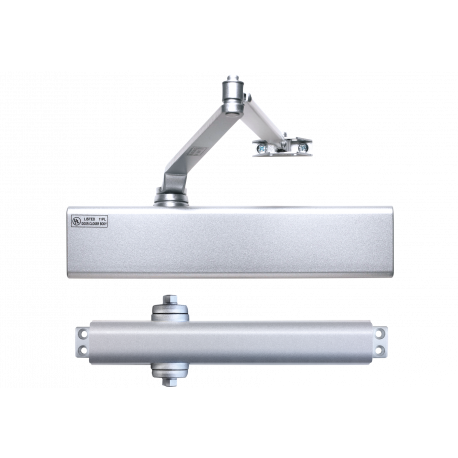

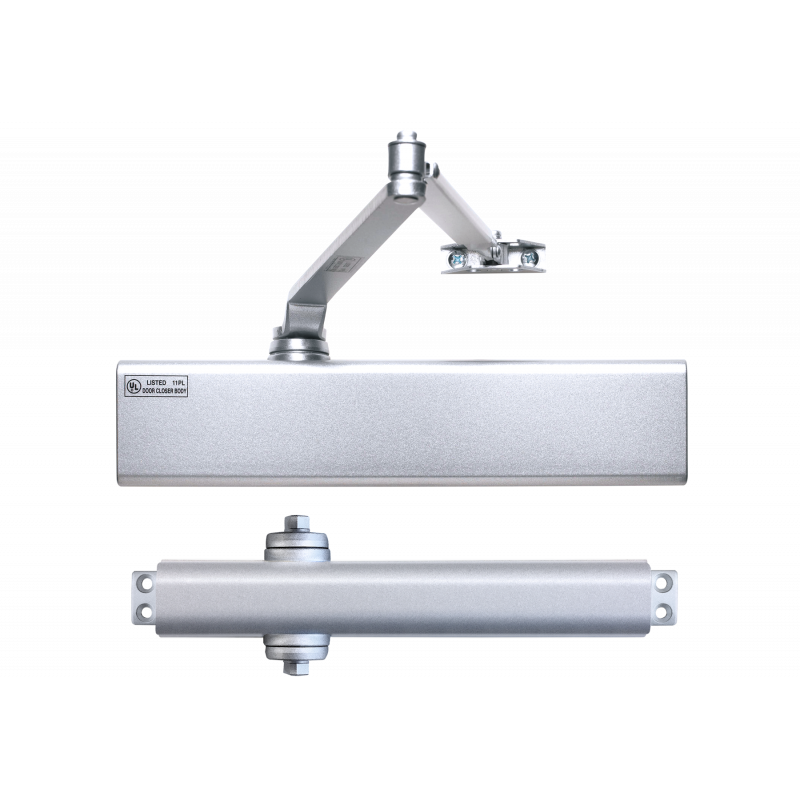

Value Brand 800 Series Heavy-Duty Grade 1 Slim Line Surface Door Closer, Adjustable 1-6
Details: Value Brand 800 Series Heavy-Duty Grade 1 Slim Line Surface Door Closer, Adjustable 1-6
A grade 1, heavy duty cast aluminum surface applied door closer, designed for commercial use and comes with hardware for all installation applications. UL/ULC listed up to three hours fire rated. It's a 1 - 6 adjustable size for most standard door openings.
Specifications
- Performance
- Complies with ANSI A156.4, Grade 1, 2,000,000 cycles, UL/ULC listed up to 3 hours fire rated
- Chassis
- Cast aluminum
- Handing
- Non-handed
- Arm
- Forged steel, Accommodates reveals up to 3 1/4", Adjustable extension arm
- Spring Power
- Adjustable sizes 1 - 6 for interior and exterior applications
- Backcheck
- Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door
- Valves
- Adjustable, independent, Non-critical - sweep and latch, Consistent closing speeds
- Fasteners
- Metal screws included for metal and aluminum mounting applications, Wood screws included for wood door mounting applications
- Cover
- High impact plastic streamlined cover
- Door Range
- Up to 180 degrees
- Door Preparation
- 12" horizontal × 3/4" vertical , 4- Hole mounting locations , Retrofits traditional closer
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| DC100159 ALUM | Aluminum |
| DC100160 DURO | Duranodic |
