Details: Value Brand 900 Series Heavy-Duty Grade 1 Surface Door Closer, Adjustable 1 - 6

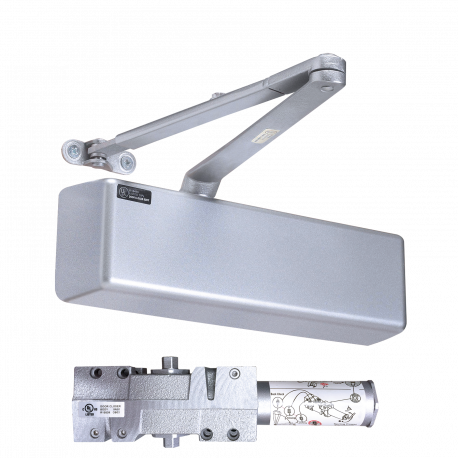

The 900 Series Door Closer is a grade 1, maximum duty cast steel surface applied door closer. Ideal for new applications where durability is required. Tell's 900 Series features a rugged construction with adjustable backcheck, independent sweep and latch closing speed, and is a 1 - 6 adjustable size.

Specifications

Performance: Complies with ANSI A156.4, Grade 1, 2,000,000 million cycles, UL/ULC listed up to 3 hours fire rated
Chassis: Closer cast steel
Handing: Non-handed
Arm: Forged steel, Accommodates reveals up to 3-1/4", Adjustable extension arm, Track Arm
Spring Power: Adjustable sizes 1 - 6
Backcheck: Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door
Valves: Adjustable, independent, non-critical (sweep and latch), consistent closing speeds
Fasteners: Metal screws included for hollow metal and aluminum mounting applications, Wood screws included for wood door mounting applications
Cover: High impact plastic
Door Range: Up to 180 degrees
Door Preparation: 5" horizontal × 2-1/4" vertical, 4-Hole mounting locations, Retrofits traditional closer

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Value Brand Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
DC10075 ALUM	Aluminum,
DC100123 DURO	Duranodic,
DC100138 ALUM	Aluminum,
DC100139 DURO	Duranodic,
DC100181 ALUM	Aluminum,
DC100190 DURO	Duranodic,
