Details: Value Brand KC2300 Heavy-Duty Grade 2 Cylindrical Knobset, Empire Knob

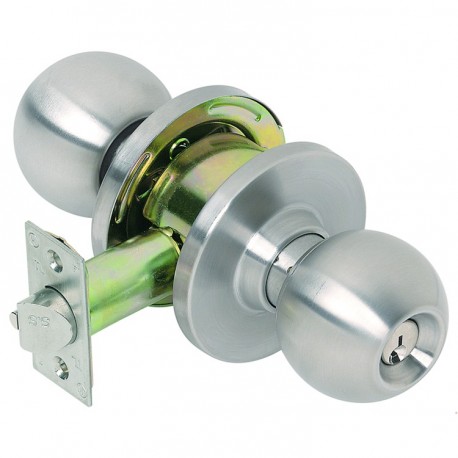

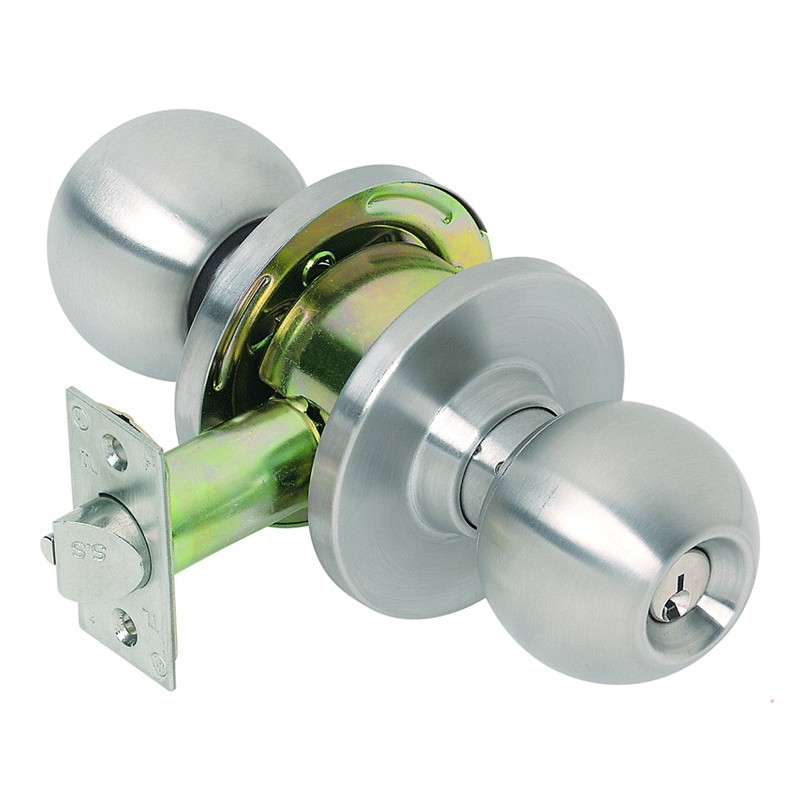

The KC2300 Series Empire Ball Knob is a grade 2 cylindrical, heavy duty knob in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These knobs can be used in new construction or replacement hardware fitting a standard 161 door prep.

Specifications

Performance: Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, UL/ULC listed for 3 hour fire door
Chassis: Cylindrical, Steel - coated with zinc dichromate (corrosion resistance)
Latch: 2-3/4", 1" Housing diameter, 1/2" Stainless steel throw, 1-1/8" × 2-1/4" Square corner faceplate, Optional 2-3/8" Backset
Rose: 3" diameter
Strike: ASA Strike 1-1/4" × 4-7/8", Optional T-Strike 1-1/8" × 2-3/4", Optional F-Strike (full lip)
Cylinder: SCC - C keyway, 6-pin solid brass, Keyed different (KD)
Door Range: 1-3/8" - 1-3/4"
Door Preparation: 2-1/8" diameter for knob, 1" diameter for latch bolt, Fits standard 161 door prep

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Value Brand Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
KC2381 EMP US32D KD	Keyed Different
KC2381 EMP US32D KA	Keyed Alike
KC2381 EMP US32D MK	Master Keyed
KC2381 EMP US32D GMK
KC2381 EMP US32D CMK
KC2375 EMP US32D KD	Passage, Keyed Different
KC2375 EMP US32D KA	Passage, Keyed Alike
KC2375 EMP US32D MK	Passage, Master Keyed
KC2375 EMP US32D GMK	Passage,
KC2375 EMP US32D CMK	Passage,
KC2376 EMP US32D KD	Privacy, Keyed Different
KC2376 EMP US32D KA	Privacy, Keyed Alike
KC2376 EMP US32D MK	Privacy, Master Keyed
KC2376 EMP US32D GMK	Privacy,
KC2376 EMP US32D CMK	Privacy,

View All Model Numbers and Options
