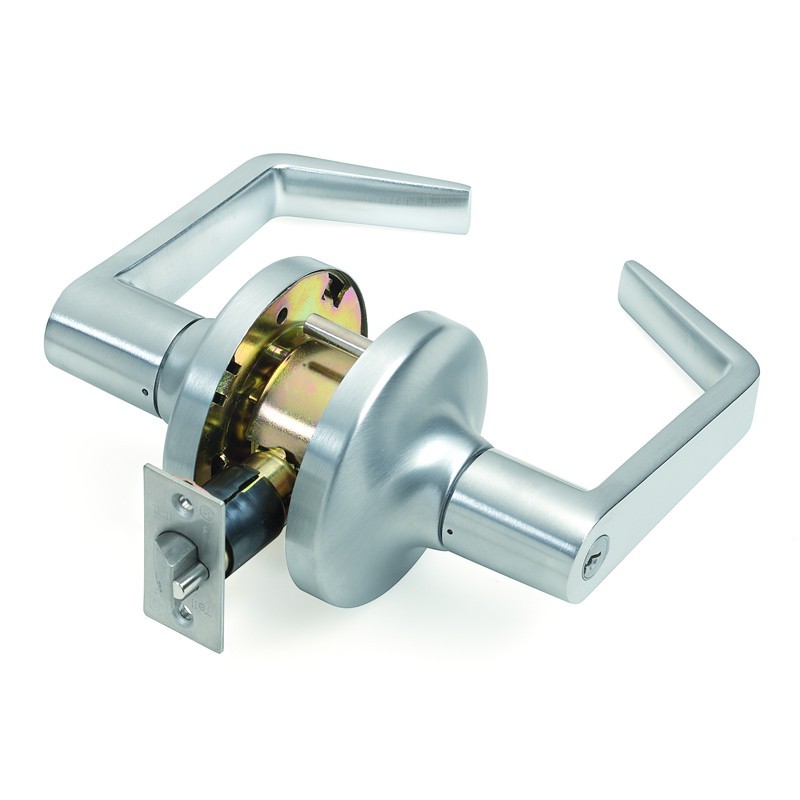

Details: Value Brand LC2400 Heavy-Duty Cylindrical Grade 2 Leverset

The LC2400 Series Lever is a grade 2 cylindrical, heavy-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep.

Specifications

Performance: Grade 2 heavy duty, 400,000 cycles
Compliance: UL/ULC listed for 3-hour fire door, American Disabilities Act (ADA) ANSI A117.1, ANSI A156.2, Series 400
Chassis: Cylindrical, Steel - coated with zinc dichromate (corrosion resistance), Freewheeling clutch for added security, Independent spring cages
Handle: Lever, Solid cast non-handed
Latch: 2-3/4" Backset, 2-3/8" available, 1" Housing diameter, 1/2" Stainless steel throw, 1-1/8" x 2-1/4" Square corner faceplate
Rose: 3-1/2" diameter
Strike: ASA Strike 1-1/4" x 4-7/8", Optional T-Strike 1-1/8" x 2-3/4", Optional F-Strike (full lip)
Cylinder: SCC Standard, C keyway, 6-pin solid brass , Keyed different (KD)
Door Range: 1-3/8" - 2"
Door Preparation: 2-1/8" Diameter for lever, 1" Diameter for latchbolt, Fits standard 161 door prep with thru-bolting

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Value Brand Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
LC2475 CTL MK	Passage, Master Keyed
LC2475 CTL GMK	Passage,
LC2475 CTL CMK	Passage,
LC2401 CTL KD	Single Dummy, Keyed Different
LC2401 CTL KA	Single Dummy, Keyed Alike
LC2401 CTL MK	Single Dummy, Master Keyed
LC2401 CTL GMK	Single Dummy,
LC2401 CTL CMK	Single Dummy,
LC2484 CTL KD	Classroom, Keyed Different
LC2484 CTL KA	Classroom, Keyed Alike
LC2484 CTL MK	Classroom, Master Keyed
LC2484 CTL GMK	Classroom,
LC2484 CTL CMK	Classroom,
LC2486 CTL KD	Storeroom, Keyed Different
LC2486 CTL KA	Storeroom, Keyed Alike

View All Model Numbers and Options
