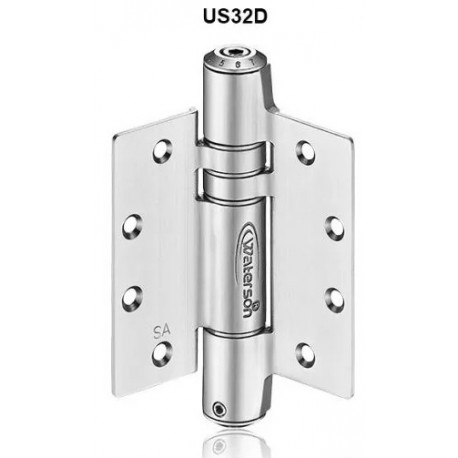

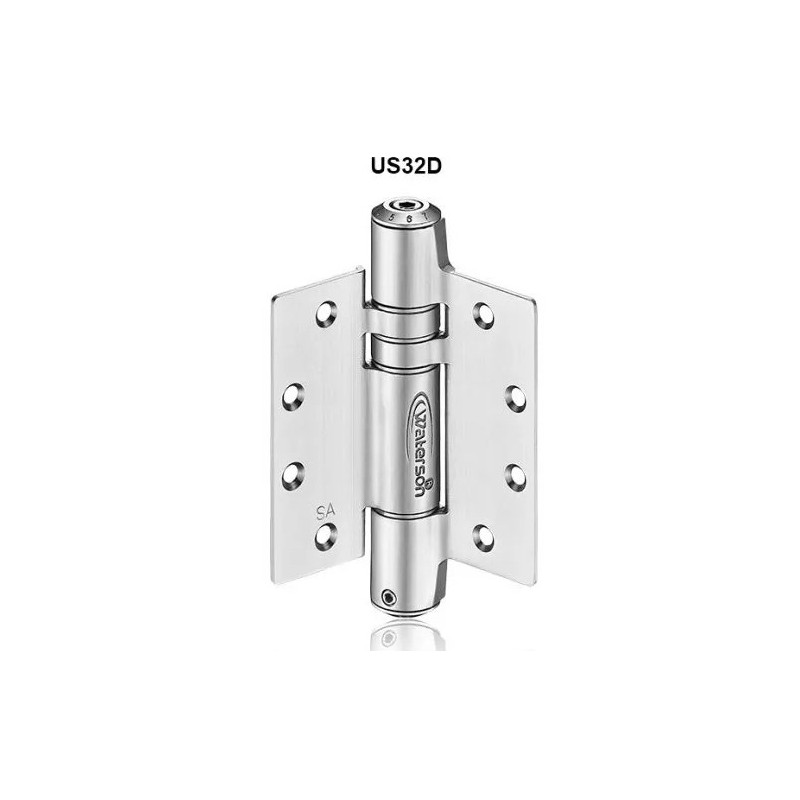

Details: Waterson K51M Stainless Steel Self Closing Hinge

Commercial self-closing hinges need to handle the daily rigors of frequent use. Waterson Stainless Steel Closer Hinges are designed to manage commercial closing demands while maintaining fluid and effective movement, particularly with obligatory fire rated doors. A typical 7'0 door utilizes three active Waterson Closer Hinges to create a perfect, self-closing system. Each hinge's unique numerical panel allows the spring tensions to adjust precisely according to door weight and environmental conditions. Additionally, Waterson hinges meet all ADA codes concerning speed control, closing force, and door clearance.

Features

3hr Fire Rated
Commercial Grade
304/ 316 Stainless Steel
Aesthetically pleasing
Fully Speed & Force Adjustable
ADA Compliant
ANSI A156.17 Grade One - UL Listed

Specifications

Door Thickness: 1-3/4", 1-3/8", 1-3/4" To 2-1/4" & 2-1/4" Up
Door Weight: 260 lbs & 330 lbs
Door Range: Self-closing, Fluid Motion & 90 Degree Hold
Hinge Size: 4" × 4" × 0.130", 4.5" × 4.5" × 0.134", 5" × 5" × 0.190", 5" × 5" × 0.146" & 6" × 6" × 0.160"
Sets: 3 Hinges/door & 4 Hinges/door
Closing Type: Mechanical only & Hydraulic Hybrid
Certificate: ANSI A156.17 Grade 1 Grade One & UL Listed
ADA: Compliant
Closer Location: Side of door. Install easily like regular hinges
Aesthetics: Elegant and minimal visual intrusion
Opening Force: Effortless
Outdoor use: yes, highly weather-resistant
Interior use: Less likely tobe broken or vandalized
Fire Resistance: UL-Listed 3 hours
Durability: 1 millio cycle test certified
Total cost: Low installation & maintenace expense

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Waterson self-closing hinge: make door-opening easier for little children

Available Model Numbers and Combinations

Model/SKU	Attributes
K51M-500D4731D-3161342-48-260-HO	Satin Brass, 5" x 5" x 0.190", Hydraulic + Hold Open ( DS.SB.HA.SA1 ) 4 Hinges Per Door, 316 Stainless Steel, 1-3/4" to 2-1/4", 4' x 8', 260 lbs, Hold Open
K51M-450A4631-134-48-330-FD	Flat Black, 4.5" x 4.5" x 0.134", Purely Mechanical ( DS.SA.SA.SA1 ) 4 Hinges Per Door, 304 Stainless Steel, 1-3/4", 4' x 8', 330 lbs, Fire Door
K51M-500B3731D-3161342-47-260-FD	Satin Brass, Hydraulic Hybrid ( DS.HA.SA1 ) 3 Hinges Per Door, 5" x 5" x 0.190", 316 Stainless Steel, 1-3/4" to 2-1/4", 4' x 7', 260 lbs, Fire Door
K51M-400B4612-138-48-330-FD	Satin Bronze, 4" x 4" x 0.130", Hydraulic Hybrid ( DS.SA.HA.SA1 ) 4 Hinges Per Door, 304 Stainless Steel, 1-3/8", 4' x 8', 330 lbs, Fire Door
K51M-450A4731-134-48-330-FD	Satin Brass, 4.5" x 4.5" x 0.134", Purely Mechanical ( DS.SA.SA.SA1 ) 4 Hinges Per Door, 304 Stainless Steel, 1-3/4", 4' x 8', 330 lbs, Fire Door
K51M-500C4731-3161342-48-260-HO	Satin Brass, 5" x 5" x 0.146", Mechanical + Hold Open ( SA.SB.SA.SA1 ) 4 Hinges Per Door, 316 Stainless Steel, 1-3/4" to 2-1/4", 4' x 8', 260 lbs, Hold Open
K51M-450A4695-134-48-330-FD	Dark Bronze, 4.5" x 4.5" x 0.134", Purely Mechanical ( DS.SA.SA.SA1 ) 4 Hinges Per Door, 304 Stainless Steel, 1-3/4", 4' x 8', 330 lbs, Fire Door
K51M-400A3612-138-47-260-FD	Satin Bronze, Purely Mechanical ( SA.SA.SA1 ) 3 Hinges Per Door, 4" x 4" x 0.130", 304 Stainless Steel, 1-3/8", 4' x 7', 260 lbs, Fire Door
K51M-400D3695-316138-47-260-HO	Dark Bronze, Hydraulic + Hold Open ( DS.HA.SB ) 3 Hinges Per Door, 4" x 4" x 0.130", 316 Stainless Steel, 1-3/8", 4' x 7', 260 lbs, Hold Open
K51M-450A4695-316134-48-330-FD	Dark Bronze, 4.5" x 4.5" x 0.134", Purely Mechanical ( DS.SA.SA.SA1 ) 4 Hinges Per Door, 316 Stainless Steel, 1-3/4", 4' x 8', 330 lbs, Fire Door
K51M-450B4630-134-48-330-FD	Stainless Steel, 4.5" x 4.5" x 0.134", Hydraulic Hybrid ( DS.SA.HA.SA1 ) 4 Hinges Per Door, 304 Stainless Steel, 1-3/4", 4' x 8', 330 lbs, Fire Door
K51M-450B4631-134-48-330-FD	Flat Black, 4.5" x 4.5" x 0.134", Hydraulic Hybrid ( DS.SA.HA.SA1 ) 4 Hinges Per Door, 304 Stainless Steel, 1-3/4", 4' x 8', 330 lbs, Fire Door
K51M-450B4731-134-48-330-FD	Satin Brass, 4.5" x 4.5" x 0.134", Hydraulic Hybrid ( DS.SA.HA.SA1 ) 4 Hinges Per Door, 304 Stainless Steel, 1-3/4", 4' x 8', 330 lbs, Fire Door
K51M-450B4695-134-48-330-FD	Dark Bronze, 4.5" x 4.5" x 0.134", Hydraulic Hybrid ( DS.SA.HA.SA1 ) 4 Hinges Per Door, 304 Stainless Steel, 1-3/4", 4' x 8', 330 lbs, Fire Door
K51M-500A3731-3161342-47-260-FD	Satin Brass, Purely Mechanical ( SA.SA.SA1 ) 3 Hinges Per Door, 5" x 5" x 0.146", 316 Stainless Steel, 1-3/4" to 2-1/4", 4' x 7', 260 lbs, Fire Door
