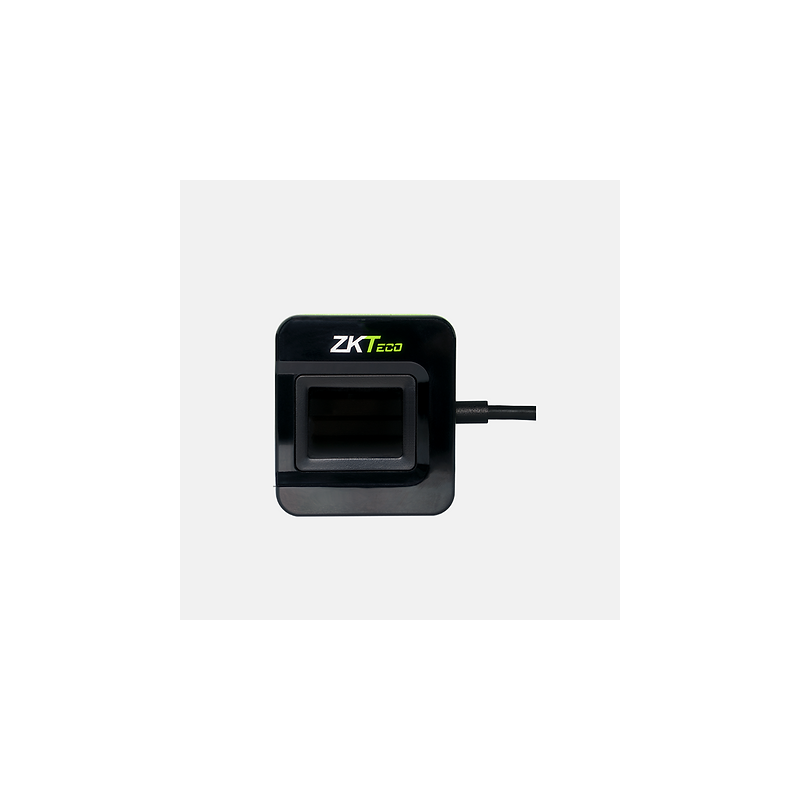

ZKTeco SLK-20R Silk ID Fingerprint Enrollment Reader

SLK-20R

Sorry, this product is no longer available for sale.

Details: ZKTeco SLK-20R Silk ID Fingerprint Enrollment Reader

SLK-20R is a high-resolution USB fingerprint reader ideal for any application which requires user identification. SLK-20R has a superior ability to capture large, high quality fingerprint images and to reject spoof fingerprints.

Features

  • FBI PIV and Mobile ID certification FAP20
  • Selectable 500, 750, or 1000 dpi output image
  • Large image capture area: 0.6 × 0.8 in
  • Durable glass touch surface
  • Rejects spoof fingerprints
  • F ast capture
  • USB2.0 High Speed
  • Multicolor (white, green, red) LED bar for status indication.
  • Compact size
  • Sealed against water and dust. IP64 rating
  • Ambient light rejection. Sunlight operation
  • Low Power Idle Mode
  • - 4° to 131° Foperating temperature range

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Specifications

Technology
Optical
Image Capture Area
0.6 × 0.8 inch (FAP20)
Touch Surface Area
0.65 × 0.9 inch
Output Image Size and Pixel Resolution
300 × 400 pixels @500dpi (native), 450 × 600 pixels @750dpi (native), or 600 × 800 pixels @1000 dpi (interpolated)
Image Bit Depth
8-bit grayscale
Interface
USB 2.0 high speed
Operating Systems
Windows 10; Linux; Android
Power Requirements
5V, supplied by USB, 200mA scanning, 100mA idle (waiting for finger)
Operating
Environment -4 F to 131 F ; 0-90% r.h. non-condensing
Certificaitons
FCC, CE, RoHS, PIV
