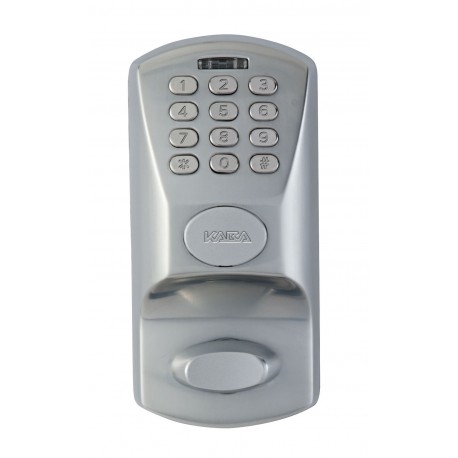

> Kaba E-Plex 1500 Series Electronic Keyless Deadbolt Cipher Lock w/ Key Override
Reduced price! Kaba E-Plex 1500 Series Electronic Keyless Deadbolt Lock w/ Key Override

Kaba

Kaba E-Plex 1500 Series Electronic Keyless Deadbolt Cipher Lock w/ Key Override

E1502

This product is currently not available for sale, please contact us for more information.

$325.00

?

Details: Kaba E-Plex 1500 Series Electronic Keyless Deadbolt Cipher Lock w/ Key Override

The E-Plex 1500 Series electronic deadbolt provides exterior access by PIN code, while allowing free egress. This small, electronic pushbutton lock replaces an existing deadbolt and eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

Features

  • Requires no wiring throught the door--no risk of pinched wires. Installs in minutes only; only one screw hole is needed.
  • Requires no wiring to or through the door--eliminates risk of damage from punched wires that can result in costly callbacks.

Locking Device

  • Mechanical 1" throw deadbolt. Deadbolt is projected and retracted with a thumb turn.
  • Mulitple users--100 codes
  • The most recent 1,000 lock events are recorded in memory, inculding the use of the mechanical key override. Software is required to view audit events.
  • Lock is easily programmed via keypad at the door or with optional Microsoft Excel-based software.

Key Override

  • Kaba 1539 6-pin cylinder; Schlage "C" Keyway

Operation Modes

  • PIN access
  • Passage can be toggled on/off or pre-programmed to re-lock after a user-specified number of hours
  • Lockout
  • Bump-resistant cylinder

Authority Levels

  • Master
  • Manager
  • Service user (one-time access or "come-and-go" access for 1 to 24 hours)
  • Access user
  • Maintenence unit user

User Parameters

  • Code length--Adjustable to accept 4 to 8 digits
  • Anti-tamper lockout--Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 9 seconds
  • Re-lock time--Adjustable from 2 to 20 seconds

Technical Data

Construction
Heavy-duty lockset designed and tested to meet BHMA Grade 2 specifications, solid brass cast exterior housing with deadbolt, metal pushbuttons
Backset
Adjustable 2-3/4" (60mm) or 2-3/8" (70mm)
Numeric Keypad
Vandalism and attack resistant, metal pushbuttons
Power
Three AA alkaline batteries
Weight
3lbs. (1.36 kg)
Minimum Stile
4" (102mm)
Finishes
Satin Chrome 626 (26D), optional Bright Brass 605 (03) or Dark Bronze 744 (simulated 10B)

Door Preparation

  • ASA 161--easily installs on door preparation with one additional through bore hole; wood or metal doors

Door Thickness

  • 1-3/8" to 2" (35mm-50mm)

Downloads

Kaba E-Plex Software

Available Model Numbers and Combinations

Model/SKU Attributes
E1502626 Satin Chrome
E1502605 Bright Brass
E1502744 Oxidized Satin Bronze
