Pemko 309 Door Bottom Sweep

309

$9.67

?

Details: Pemko 309 Door Bottom Sweep

Perimeter gasketing, unless otherwise specified, is designed for openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.

  • Punched on 6" center with slotted holes for adjustment.
  • Stainless steel fasteners are standard. Other fasteners are available upon request.

Minimum space between the door face and the stop is 3/16".

  • The maximum space is 5/16".
  • Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to
  • the depth of its seal.

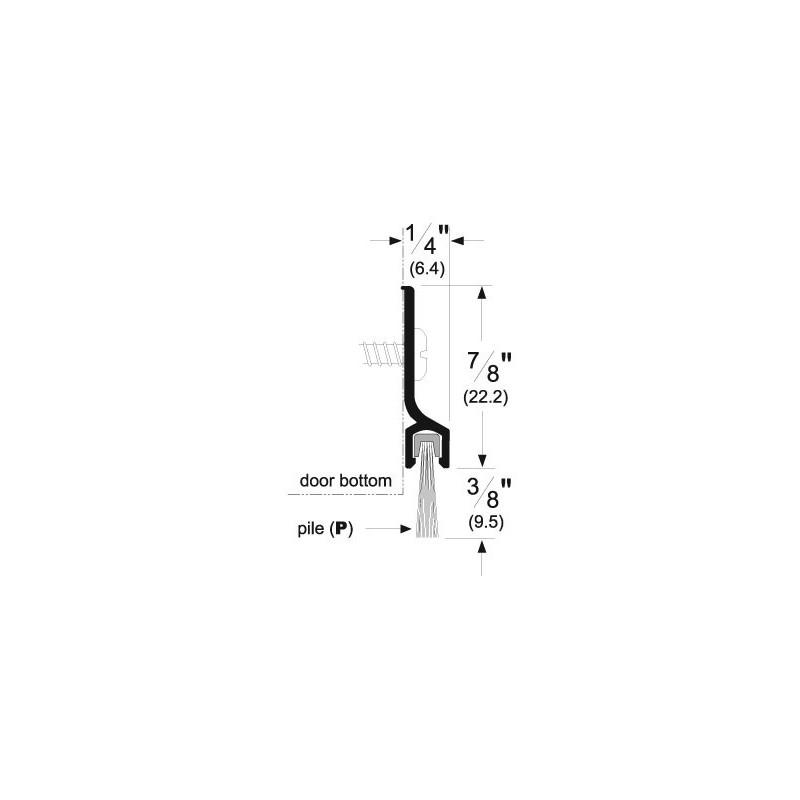

  • Seal depth is provided on each illustration.
  • This perimeter gasketing is supplied with a Pile ("P") insert - item number P3 (available in gray or black).

Ratings

  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Finishes

  • 309AP: A - Mill Finish Aluminum Aluminum with Gray Pile insert
  • 309BDGP: BDG - Bright Dip Gold Anodized Aluminum with Black Pile insert
  • 309DP: D - Dark Bronze Anodized Aluminum with Black Pile insert
  • 309GP: G - Gold Anodized Aluminum with Black Pile insert
  • 309PWP: PW - Painted White Aluminum with Black Pile insert
  • 309SNP: SN - Satin Nickel Anodized Aluminum with Black Pile insert

Documentation

Available Model Numbers and Combinations

Model/SKU Attributes
309WSPP-12 12", Pile insert, White Suede Powder Coat
309WSPP-24 24", Pile insert, White Suede Powder Coat
309WSPP-36 36", Pile insert, White Suede Powder Coat
309WSPP-48 48", Pile insert, White Suede Powder Coat
309WSPP-72 72", Pile insert, White Suede Powder Coat
309-10BE-NB-12 Satin Bronze, 12", Nylon Brush insert
309-10BE-NB-24 Satin Bronze, 24", Nylon Brush insert
309-10BE-NB-36 Satin Bronze, 36", Nylon Brush insert
309-10BE-NB-48 Satin Bronze, 48", Nylon Brush insert
309-10BE-NB-72 Satin Bronze, 72", Nylon Brush insert
309BSPNB-12 12", Nylon Brush insert, Black Suede Powder Coat
309BSPNB-24 24", Nylon Brush insert, Black Suede Powder Coat
309BSPNB-36 36", Nylon Brush insert, Black Suede Powder Coat
309BSPNB-48 48", Nylon Brush insert, Black Suede Powder Coat
309BSPNB-72 72", Nylon Brush insert, Black Suede Powder Coat

View All Model Numbers and Options
