> >>>Pemko 434_ Full-Mortise Automatic Door Bottom

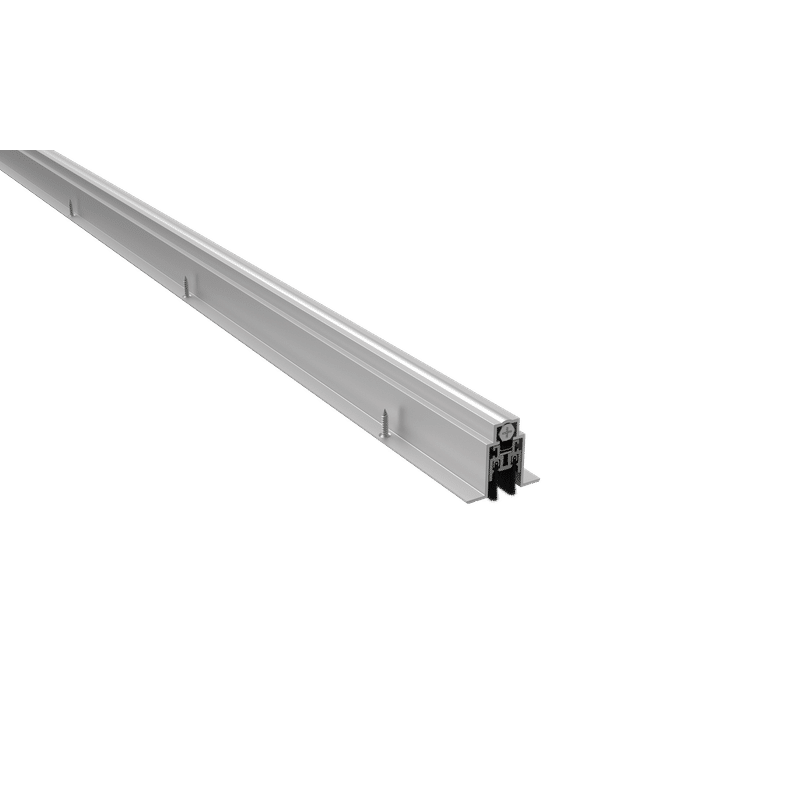

Pemko 434_ Full-Mortise Automatic Door Bottom

434

$150.52

Details: Pemko 434_ Full-Mortise Automatic Door Bottom

Full-Mortise

  • Smooth action, positive seal mechanism.
  • All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal.
  • The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal
  • down against the floor / threshold.
  • Low Closing Force and Fully Mortise Application means this Drop Seal satisfies requirements for ANSI A117.1 and ADAAG

Documentation

Available Model Numbers and Combinations

Model/SKU Attributes
434ANBL36 36", Nylon Brush insert
434ANBL48 48", Nylon Brush insert
434APKL36 36", PemkoPrene insert
434APKL48 48", PemkoPrene insert
434ARL36 36", Sponge EPDM insert
434ARL48 48", Sponge EPDM insert
