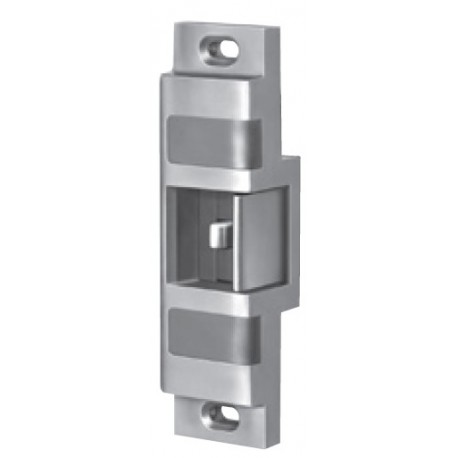

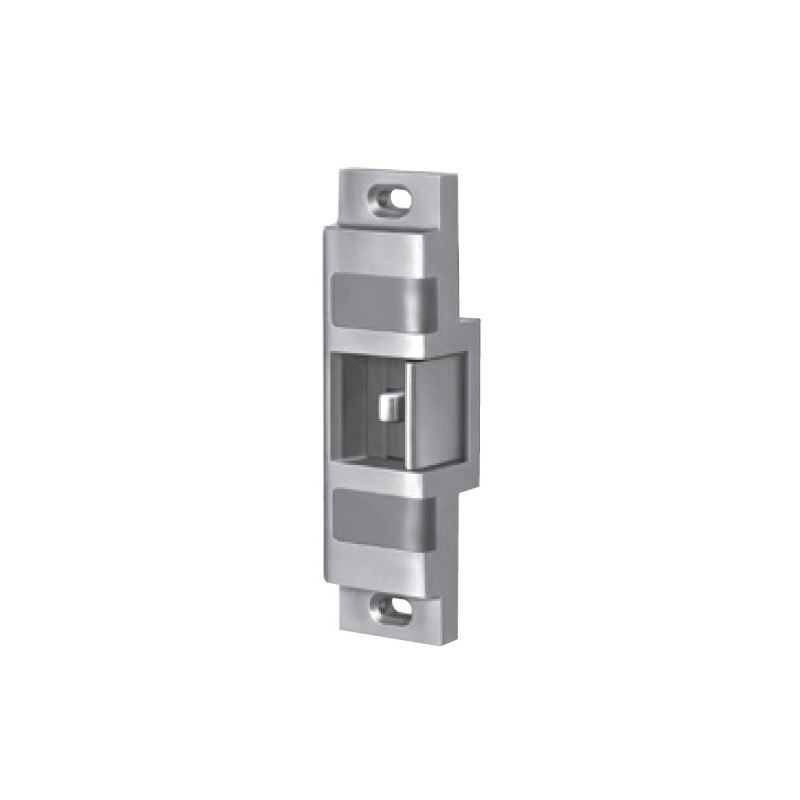

Details: Von Duprin 6100 Series Electric Strike for Rim Exit Devices

Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C Listed and ANSI/BHMA Grade 1, 1500 lb hold force rated.

6100 Series electric strikes are designed for use with a variety of rim exit devices. They interface with the latch mechanism of the exit device. The movable lip (keeper) allows a door to open even when the latch bolt is extended. This feature, called remote release, provides added benefits such as increased convenience and efficiency. The 6100 Series also provides added security and traffic control.

6100 Series electric strikes can be used for retrofit applications or new construction. To assure the proper selection of an electric strike on new applications, lockset compatibility charts are shown on the next page. When using a lockset not listed or when retrofitting a strike to an existing application, please contact Von Duprin technical support for application assistance.

The power failure mode of the 6100 can be specified at the time of order. Fail-secure is available for fire rated openings. In a fail-secure application, the door is normally locked. To unlock the door, power must be applied. Fail-safe strikes which are commonly used for life safety applications are non-fire-rated. To unlock a fail-safe strike, power is removed. The 6100 comes standard 24 VDC; 12 VDC and AC operation are optional.

Features & Benefits

Non-handed design provides greater flexibility
Strike box is adjustable to compensate for misalignment of the door or frame
Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
ANSI 156.5 Grade 1, 1500 lb hold force rated
UL1034 burglary-resistant and UL10C electric strike for fire door
Six finishes available to suite with existing hardware
Durable stainless steel construction
24 VDC standard with 12 VDC and AC operation optional
Meets BHMA A156.31, Grade 1 for endurance and strength
Static strength 1300 lbs
Dynamic strength 70 ft-labs
Endurance 1,000,000 cycles

6100 Series Specifications

	12V	24V
Resistance in Ohms±10% @ 70°F	21	82
Watt-seated @ 70°F	7.5	8
Amps-seated @ 70°F	0.6	0.33
Amps-inrush @ 70°F	0.6	0.33

Von Duprin Warranty

6100 Series Electric Strike Specification Comparisons

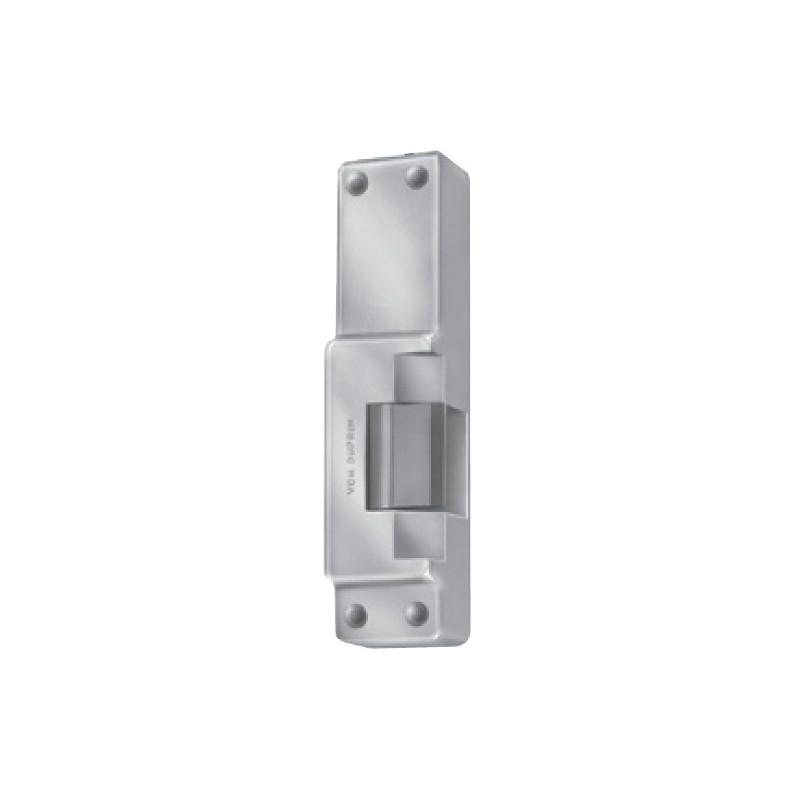

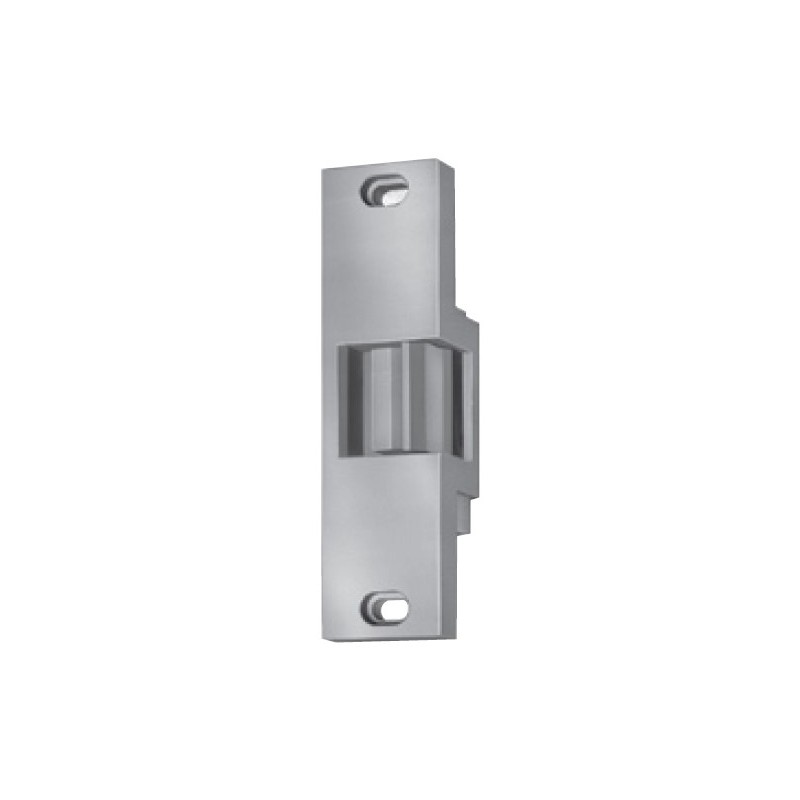

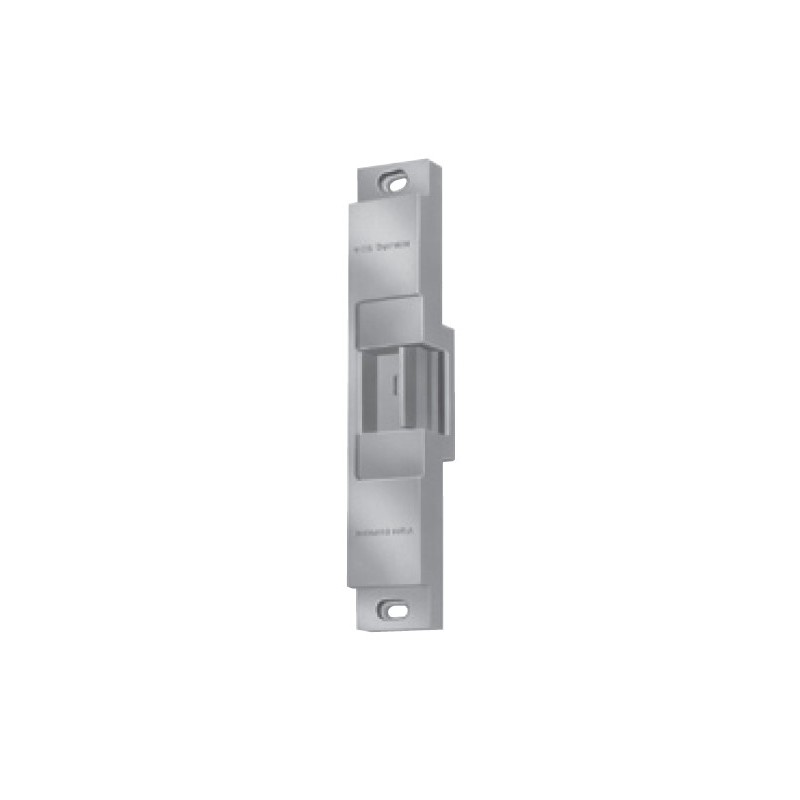

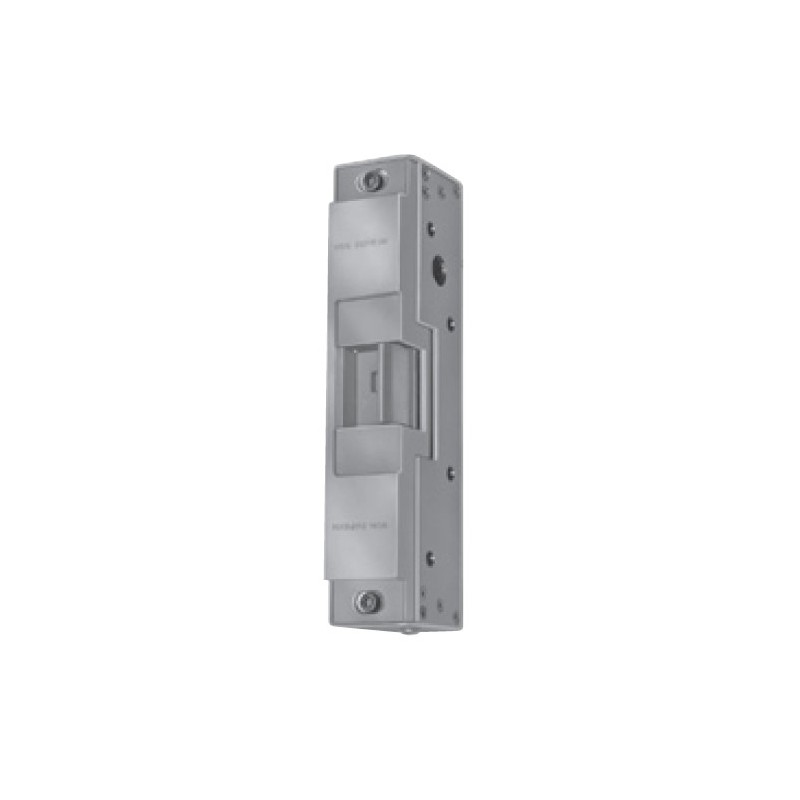

Model Number		6111	6112	6113	6114	6121
Retrofits model		VD 3031	FA 310-4	VD 3011, VD 3021	FA 310-5	FA 310-4-100
Latchbolt throw		3/4"	3/4"	3/4"	3/4"	3/4"
Face plate length		6"	9"	6"	7"	9 1/2"
Backbox depth		1 3/4"	1 3/4"	1 15/16"	---	N/A
Lockset		Rim exit device	Rim exit device	Rim exit device	Rim nightlatch	Rim exit device
Number of doors	Single	✔	✔	✔	✔	---
	Double door with mullion	✔	---	---	---	---
	Double door without mullion	---	---	---	---	✔
Door/frame type	Hollow metal	✔	✔	✔	✔	✔
	Aluminum	✔	✔	✔	✔	✔
	Wood	✔	✔	✔	---	✔
Options	Blade stop shim	Yes	No	Yes	No	No
	DS or DS-LC (dual monitor switches)	Yes	Yes	Yes	Yes	Yes
	EB(entry buzzer-fail-secure only)	Yes	Yes	Yes	Yes	Yes
Certifications		UL1034,UL10C,ANSI/BHMA 156.5 Grade 1, 1500 lb hold-force rated
Application notes		1	2	3	4	5

1. For use with rim exit devices on single doors or double doors with mullion applications. 1⁄2" projection blade stop shim 010055-XX available for use on cased opening or blade stop frames. Specify when using 55 rim devices. May also be used with vertical rod exit devices noted on previous page x Pullman latch LBR. Non-fired-rated.
2. For use with rim exit devices on single door applications. Designed to replace Folger Adam 310-4, minor fame prep modification required.
3. 1⁄2" projection blade stop shim 010055-XX available for use on cased opening or blade stop frames. Non-fire rated.
4. Surface applied strike for use with rim nightlatches on single door applications. Designed to replace Folger Adam 310-5, with different mounting hole locations from Folger Adam.
5. Non-fire rated. For use with rim exit devices on double door applications without mullion. Strike mounts on inactive leaf. Replace Folger Adam 310-4-100.

Electric Strike Wire Size Selection

Current Requirement at 24VDC
Length of wire run (in feet)	0-.5 Amp	.5-1 Amp	1-2 Amp	2-3 Amp
0-100	18	18	18	18
100-200	18	18	18	16
200-300	18	18	16	14
300-450	18	16	14	12
450-600	18	16	12	NR
600-900	16	14	NR	NR
900-1200	14	12	NR	NR
NR=Not recommended

6100 Series Electric Strike Cross Reference

Name	Strike/Lock mounting	# Doors	Frame material (SGL DR) Door Material (BL DR)	Faceplate length	Drop in replaces Von Duprin	Drop in replaces Folger Adam
6111	Rim device	Single¹	All	6"	3031
6112	Rim device	Single	All	9"		310-44
6113	Rim device	Single	All	6"	3011,3021
6114	Rim nightlatch	Single	All	7"		310-55
6121	Rim device	Double-closed back	All	9"		310-4-1005
6210	Mortise	Single	HM/Alu	4 7/8"
6211	Mortise or cylindrial	Single	HM/Alu	4 7/8"	3140	712
6211AL	Mortise or cylindrial	Single	Aluminum	4 7/8"		722
6211WF	Mortise or cylindrial	Single	Wood	4 7/8"		7326
6212	Mortise or cylindrial	Single	HM/Alu	6 3/8"	3146
6212WF	Mortise or cylindrial	Single	Wood	6 3/8"
6213	Mortise or cylindrial	Single	All²	6"	3041,42,61,62
6214	Mortise or cylindrial	Single	All³	9"		310-2 3/4
6215	Mortise or cylindrial	Single	All³	9"		310-2
6216	Mortise or cylindrial	Single	HM/Alu	9"		310-3-1
6221	Mortise or cylindrial	Double-open back	All	6"	3071,72
6222	Mortise or cylindrial	Double-open back	HM/Alu	9"		310-2 3/4 OB
6223	Mortise or cylindrial	Double-closed back	All	6"	3091,3092
6224	Mortise or cylindrial	Double-closed back	HM/Alu	9"		310-2 3/4
6224AL	Mortise or cylindrial	Double-closed back	Aluminum	9"		310-2 RF
6225	Mortise or cylindrial	Double-open back	HM/Alu	9"		310-2 OB
6226	Mortise or cylindrial	Double-closed back	HM/Alu	9"		310-2

¹Includes double door with mullion.

²Recommended on wood frames only if drop in replacement is needed for 3041,42,61,62 on wood frames. Otherwise use 6211WF.

³Recommended on wood frames only if drop in replacement is needed for 310-2 3/4,310-2 on wood frames. Otherwise use 6211WF.

⁴Strike lip area cutout is slightly larger than Folger Adam.

⁵Surface applied strike. Mounting hole locations different from Folger Adam.

⁶Wood frame horizontal solenoid location differs from Folger Adam. May require frame prep modification when retrofitting.

Finishes

US number	BHMA number	Description	Von Duprin number
US3	-	Plated polished brass on stainless steel	85
US4	-	Plated dull brass on stainless steel	84
US10	639	Plated dull bronze on stainless steel	06
US10B	640	Planted dark bronze on stainless steel	86
US32	629	Stainless steel,polished	31
US32D	630	Stainless steel,satin	32

Available Model Numbers and Combinations

Model/SKU	Attributes
6111 US3	For Vertical Rod Exit Devices
6111 US4	For Vertical Rod Exit Devices, Satin Brass Plated
6111 US10	Satin Bronze, For Vertical Rod Exit Devices
6111 US10B	For Vertical Rod Exit Devices
6111 US32	For Vertical Rod Exit Devices
6111 US32D	For Vertical Rod Exit Devices
6112 US3	Replaces FA 310-5
6112 US4	Satin Brass Plated, Replaces FA 310-5
6112 US10	Satin Bronze, Replaces FA 310-5
6112 US10B	Replaces FA 310-5
6112 US32	Replaces FA 310-5
6112 US32D	Replaces FA 310-5
6113 US3	Retrofits VD 3011, 3021
6113 US4	Satin Brass Plated, Retrofits VD 3011, 3021
6113 US10	Satin Bronze, Retrofits VD 3011, 3021
