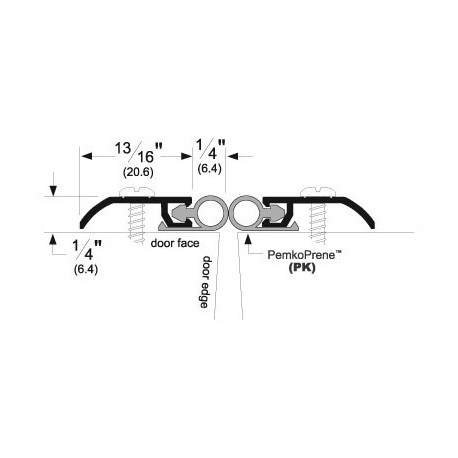

Pemko 297 Split Astragal

297

$7.25

?

Details: Pemko 297 Split Astragal

Perimeter gasketing, unless otherwise specified, is designed for openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.

  • Punched on 6" center with slotted holes for adjustment.
  • Stainless steel fasteners are standard. Other fasteners are available upon request.

Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to

  • the depth of its seal.
  • Seal depth is provided on each illustration.
  • Stainless steel fasteners are standard.
  • Other fasteners are available.
  • Model 297_ is available with self-adhesive, two-sided tape (TST) and tek screws (3 slotted holes per part) for easy
  • installation.
  • To obtain this option, add "TST" to the end of the part when ordering (i.e. 297APK3680TST).
  • This perimeter gasketing is supplied with a PemkoPrene® ("PK") insert - item number PK47 (available in gray or black).

Ratings

  • Air Infiltration Tested
  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Finishes

  • 297APK: A - Mill Finish Aluminum Aluminum with Gray PemkoPrene insert
  • 297BDGPK: BDG - Bright Dip Gold Anodized Aluminum with Black PemkoPrene insert
  • 297DPK: D - Dark Bronze Anodized Aluminum with Black PemkoPrene insert
  • 297GPK: G - Gold Anodized Aluminum with Black PemkoPrene insert
  • 297PWPK: PW - Painted White Aluminum with Black PemkoPrene insert
  • 297SNPK: SN - Satin Nickel Anodized Aluminum with Black PemkoPrene insert

Pemko Thresholds & Gasketing

Pemko Thresholds and Gasketing
Pemko Part No.DescriptionHagerNGPReeseDraftsealZeroKN CrowderDHSI
151_Saddle Threshold, 1/4 x 3418S411S263DS300063------
154_Smooth Top Saddle Threshold, 1/2 x 5492S512S105DS505*---------
157_Transition/Offset Threshold, 1/2" offset x 5 1/2407S655S512---104*------
170_Saddle Threshold, 1/2 x 4404S424* / 424FC*S204* /S424 /S4LDS400*---CT-9---
171_Saddle Threshold, 1/2 x 5412S425*S205*DS500*8655CT-10---
172_Saddle Threshold, 1/2 x 6415S426*S206*DS600*656*CT-11---
173_Saddle Threshold, 3/16 x 2 1/4436S410S225DS2000---CT-31---
174_Carpet Divider, 3/8 x 2 1/2503S*417*S266------------
175_Saddle Threshold, 1/2 x 4404S*412------164*------
176_Saddle Threshold, 1/2 x 7476S427*S207*DS700*6570*CT-12---
18/1ASmooth Surface Threshold, 1/8" thick676SMIL408 /818 /8132BAP18---600CP------
18041_NBBrush Gasketing893S9600*</td>804*DS163NB8193A.------
18061_NBBrush Gasketing802S600*964DS148*---W25---
18100_NBBrush Gasketing801SB*601*967DS149*---W24S---
18137_NBBrush Gasketing806SB*E609965DS150*---------
18175_NBBrush Gasketing---G610973DS144P---W33S---
190_Floor Plate, Adj Threshold Component, 1/4 x 2440S8142232---672------
191_Floor Plate, Adj Threshold Component, 1/4 x 3445S8143233*---673------
192_Floor Plate, Adj Threshold Component, 1/4 x 4450S8144234---674------
193_Floor Plate, Adj Threshold Component, 1/4 x 6 1/8460S8146*236---676------
196_Floor Plate End Support, 1/4 x 1 1/8484S8134*261---69CT-23---
2005_TLatching Panic Exit Threshold, 1/2 x 5520SN---S483DS178N65------
210APKDoor Shoe with Rain Drip, 1 1/4"777SNMIL118N---DS210*---------
211APKDoor Shoe, 1 1/4"---313NA*---DS211AT153A------
216APKDoor Shoe with Rain Drip, 1 3/4"778SNDBA119NA*---DS216*---------
2173AVDoor Shoe, Triple Fin, 1 3/4"---26NA*------111A-FLO / 111A------
221APKDoor Shoe/Kickplate, 1 3/4"782SNMIL99NA---DS212*---------
234APKMortise Sweep, 1 3/16"774SNMIL112N*---DS234253A------
252_Half Saddle Threshold , 1/2 x 2---321S470*DS222*622CT-44-1---
252x226AFGTFrost Guard Latching Threshold, 1/2 x 4 1/8515SNMIL8434S*---DS177X4TBAT---------
252x3_FGFrost Guard Saddle Threshold, 1/2 x 5 1/18421S8425S282*DS501TB*625CT-45---
253_Half Saddle Threshold , 1/2 x 3433S322S283*DS333*1673*CT-45-1---
253x226_FGTFrost Guard Latching Threshold, 1/2 x 5 1/8516SN8435SS498DS177X5TB_T525------
253x3_FGFrost Guard Saddle Threshold, 1/2 x 6 1/8422S8426S473DS601TB*626CT-46---
253x4_FGFrost Guard Saddle Threshold, 1/2 x 7 1/8424S8427S475DS701TB---------
254_Half Saddle Threshold , 1/2 x 4432S327S284DS444*1374*CT-804---
2548ASaddle Threshold, 1/2 x 8426SMIL428E* / 428FC*---DS800*---CT-32---
254x226_FGVFrost Guard Latching Threshold, 1/2 x 6 1/8517SV8436*S474------------
254x4_FGFrost Guard Saddle Threshold, 1/2 x 8 1/8424S8428S478DS801TB*---------
255x5_FGFrost Guard Saddle Threshold, 1/2 x 10 1/8452S8430S481------------
270_Saddle Threshold, 1/4 x 4403S413*S404DS4000544CT-64---
271_Saddle Threshold, 1/4 x 5413S513*S405DS5000*545CT-65---
272_Saddle Threshold, 1/4 x 6417S613S406DS6000546CT-66---
2727ATransition/Offset Threshold, 1/4" offset x 7---659S714A---103A------
273_Half Saddle, 1/4 x 3---315S814DS3333*1545*------
274_Half Saddle, 1/4 x 4---415S439DS4444*239CT-704---
2748_Saddle Threshold, 1/4 x 8428S813*S408DS8000548------
276_Saddle Threshold, 1/4 x 7430S713*S407DS6666*547------
2815_MMagnetic Gasketing859S*157M*574---370*W27---
285_RPerimeter Gasketing861SN*108N39DS341*1370* /270*/272W47---
2891_NBPerimeter Gasketing for Door Closer Mount---701EP---------------
2891_SPerimeter Gasketing for Door Closer Mount---9700*---------------
290_SCompanion Gasketing for Door Closer Mount880S700E*655*------W20S---
29310_PPerimeter Gasketing , Concealed Fasteners885S170P* /675129_PDS113P---W32---
29326_NBConcealed Fastener Brush Gasketing882SB673---DS158---------
296_RPerimeter Gasketing880SN*132N*49DS338---W16N*---
297_VPerimeter Gasketing896SV156VDS75------------
303_PKPerimeter Gasketing891SN---815DS103_T8303A*W17N*---
303_SPerimeter Gasketing---155S*678*---8303A*------
305_NPerimeter Gasketing872SN115N* / 127N103* / DS70DS142_N*50W-5-
307_V / 308_VFace-Mount Door Sweep---100V*M15A*DS140*3194AA*W-4---
315_NPerimeter Gasketing/Door Sweep750SN* / 875S*200N* / 130N*323*DS138_N*139* / 329W11*---

Disclaimer: This is a comparison for like product. This is not a legal or binding document. Consult manufacturer’s catalogs for additional information.

Available Model Numbers and Combinations

Model/SKU Attributes
297APK-24 24", Satin Nickel, PemkoPrene
297APK-36 36", Satin Nickel, PemkoPrene
297APK-48 48", Satin Nickel, PemkoPrene
297APK-72 72", Satin Nickel, PemkoPrene
297APK-96 Satin Nickel, 96", PemkoPrene
297AS-24 24", Satin Nickel, Sponge Silicone
297AS-36 36", Satin Nickel, Sponge Silicone
297AS-48 48", Satin Nickel, Sponge Silicone
297AS-72 72", Satin Nickel, Sponge Silicone
297AS-96 Satin Nickel, 96", Sponge Silicone
297AV-24 24", Satin Nickel, Vinyl
297AV-36 36", Satin Nickel, Vinyl
297AV-48 48", Satin Nickel, Vinyl
297AV-72 72", Satin Nickel, Vinyl
297AV-96 Satin Nickel, 96", Vinyl
