Trine 323478LC-32D Axion 3000 Series Faceplace & Electric Strike Kit for Cylindrical Locks

323478LC-32D

Also Available Electric Strike and Faceplate Kit

$277.00

Details: Trine 323478LC-32D Axion 3000 Series Faceplace & Electric Strike Kit for Cylindrical Locks

The enhanced Cylindrical lock solution as of 2013 now includes the 234X Faceplate and the 478-CCFP (competitor filler plate) in addition to the current tools already included Trine Solution. With the Patented horizontal adjustment feature -- Guaranteed not to move -- and the Smallest electric strike faceplate in the world, this 3000 Series strike is your universal ANSI solution.

Features

  • BHMA GRADE 1
  • 500,000 + life cycles
  • Solid stainless steel latch and locking mechanism

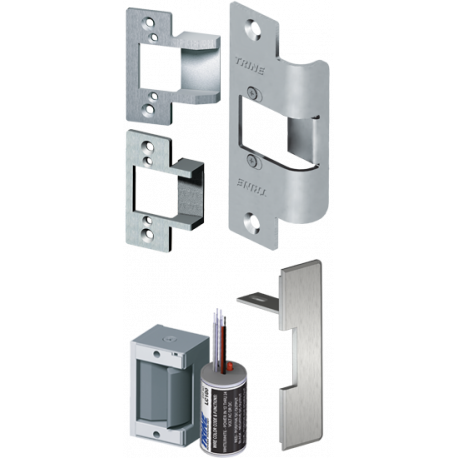

Kit Includes

  • One (1) 234-26D Faceplate Faceplate
  • One (1) 234X Faceplate
  • One (1) 478-32D Faceplate
  • One (1) 30LC Mechanism
  • One (1) 478-CCFP (Competitor Filler Plate)

Compare Cutting

  • Top: Standard Door Strike Plate
  • Middle: Trines 323478LC Faceplates Require up to 60% less cutting and the 234 requires up to 80% less cutting.
  • Bottom: Their strike requires extensive cutting of the frame.

Electrical Characteristics

VoltageCurrent/AmpsOhms (Ω)DutySoundWire Color
12DC 0.743/0.298 13.0 Intm./Cont. Silent Red
12AC 0.715/0.277 13.0 Intm./Cont. Silent Red
24DC 0.397/0.170 13.0 Intm./Cont. Silent Red
24AC 0.378/0.173 13.0 Intm./Cont. Silent Red

LC-100

This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection.

Documentation

Trine Cross Reference Chart

TrineFolger AdamsHESVon DuprinAdams RiteRCI
4200----50004200, 51007100, 74004 Series, 6 Series
4100712/712-75/732 732-75/642CYL45006400, 6211/6211WF72002164
4100DBDL----1006CDB6400----F2 Series
4850----9400, 9600--------0563
4800F----9500, 96006300----0162F
4801712/712-75/732 732-75/642CYL9700------------
EN400----1006J/75016211/6211WF72002114/F4114
EN430652SYL1006KD6210----2134/2334
EN435652RFL1006K6210----2124
EN800652RFL7000-783S611274R10161
EN850310-47000-789S----74R2----
EN950310-275056215/6226--------
EN950W310-2W----------------
EN960310-2 3/4----6214/6224--------
323478LC--------------------
234--------------------
258--------------------
458--------------------
478----5000/5200+501----7400+L6514+
478RD----5000/5200+501"A"----7401+L6504+
