> >>>>Trine 4801 3/4" Thick - "Bolt" Electric Strike
Reduced price! Trine 4801 3/4" Thick - "Bolt" Strike

Trine

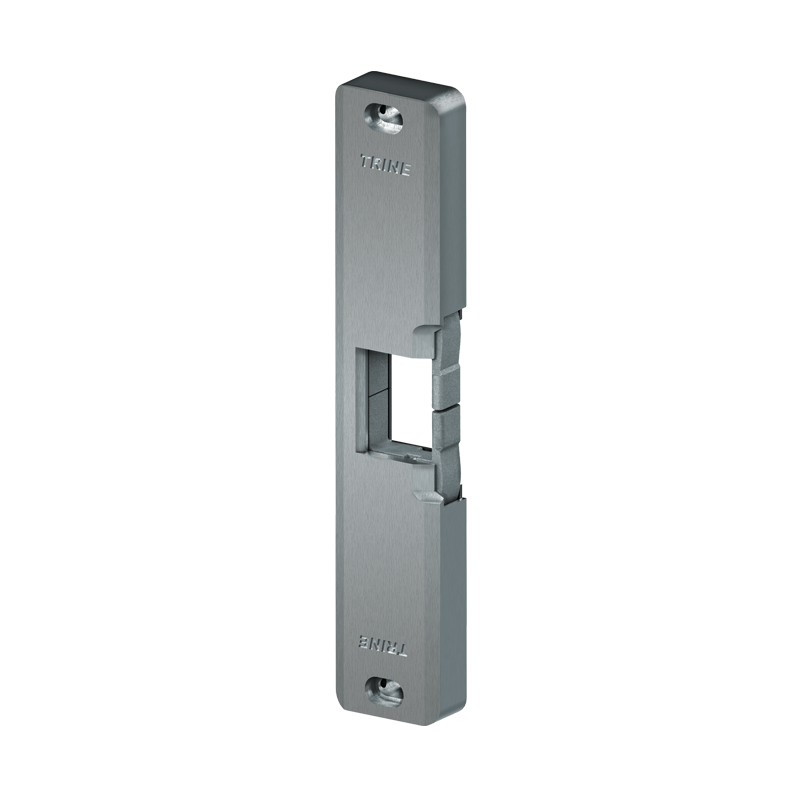

Trine 4801 3/4" Thick - "Bolt" Electric Strike

4801-

$635.00

Details: Trine 4801 3/4" Thick - "Bolt" Electric Strike

The 4801 The "Bolt" Panic Electric Strike

For use with the Yale Squarebolt ® or Corbin Russwin Securebolt ™ in new or replacement installations with wood or metal door frames.

  • This is a Grade 1 Strike -- 3/4" thick Surface Mount that comes with a 1/8" Spacer.
  • Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input -- with surge and kickback protection
  • Comes with Trines Patented 6-Pin Anchoring System.
  • Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Fail-safe/Fail-secure (field selectable).
  • No cutting or worrying about voltage means you are always prepared.
VoltagePull In/Holding Current/AmpsDutySound
12DC0.566/0.217Intm./Cont.Silent
24DC0.253/0.099Intm./Cont.Silent
12AC0.509/0.181Intm./Cont.Silent
16AC0.405/0.149Intm./Cont.Silent
24AC0.215/0.087Intm./Cont.Silent

Specifications

Lower Temperature Rating
-20°C
Maximum Temperature
40°C
Voltage
12-24 AC and DC
Country of Origin
America
Warranty
2 Year Limited Warranty (Axion)

Specifications & Options

Security
Fail Safe, Fail Secure
Voltage
12VDC, 16VAC, 16-24VAC
Duty
Heavy Duty (Grade 1)
Door Frame
Wood, Hollow Metal
Monitoring
Latchbolt
Bolt Throw / Projection
3/4"
Mounting
Surface Mounted

Trine Cross Reference Chart

TrineFolger AdamsHESVon DuprinAdams RiteRCI
4200----50004200, 51007100, 74004 Series, 6 Series
4100712/712-75/732 732-75/642CYL45006400, 6211/6211WF72002164
4100DBDL----1006CDB6400----F2 Series
4850----9400, 9600--------0563
4800F----9500, 96006300----0162F
4801712/712-75/732 732-75/642CYL9700------------
EN400----1006J/75016211/6211WF72002114/F4114
EN430652SYL1006KD6210----2134/2334
EN435652RFL1006K6210----2124
EN800652RFL7000-783S611274R10161
EN850310-47000-789S----74R2----
EN950310-275056215/6226--------
EN950W310-2W----------------
EN960310-2 3/4----6214/6224--------
323478LC--------------------
234--------------------
258--------------------
458--------------------
478----5000/5200+501----7400+L6514+
478RD----5000/5200+501"A"----7401+L6504+

Trine Electric Strike Selector

Lockset Strike Recommendations
Name Recommended Choices
Cylindrical LockCylindrical Lock4100, 4200, 400CMRP, 234X-375, 234, 478X-375, 478, 258, 258RD, 458
Mortise with a DeadboltMosrtise With Deadbolt4100DBDL
Mortise LockMortise Lock4100, 400CMRP
Mortise LockMortise Lock4100, 4200
Dead LatchDead Latch4100, 4200, 258, 258RD, 458
Vertical Rod LatchVertical Rod Latch275VR
Mortise Exit DeviceMortise Exit Device4100, 400CMRP
Rim Panic Exit DeviceRim Panic Exit Device4850, 4850PoE, 4850LCD, 4800F, 4801, 400CMRP

Electric Strikes & Compatible Door Frames
Electric Strike Compatible Door Frames Notes
41004100Hollow Metal Frame, Wood, AluminumUse the 4100RX for Raco© frames (covers the extra 1/4" gap in the frame)
4100DBDL4100DBDLHollow Metal Frame, Wood, AluminumBest strike for allowing deadbolt privacy with an override.
42004200Wood, AluminumONLY strike with Fascia Color Options -- Match the Fascia to your frame!
4850, 4850PoE, 4850LCD4850, 4850PoE, 4850LCDHollow Metal Frame, Wood, AluminumFor wood frames use 2" long mounting screws.
4800F, 48014800F, 4801Hollow Metal Frame, Wood, AluminumFor wood frames use 2" long mounting screws.
4800F, 4801400CMRPHollow Metal Frame, WoodFor wood frames use 2" long mounting screws.
275VR275VRHollow Metal Frame, Wood, Aluminum2-3/4" wide plate. Fits in tight spots in the header.
234X-375234X-375Formed Sheet Metal, WoodFor wood frames use 2" long mounting screws.
234234Hollow Metal Frame, WoodFor wood frames use 2" long mounting screws.
478X-375478X-375Formed Sheet Metal, Aluminum, WoodFor wood frames use 2" long mounting screws.
478478Hollow Metal Frame, Wood
258, 258RD258, 258RDAluminum
458458Aluminum

Available Model Numbers and Combinations

Model/SKU Attributes
4801-BLK Not Included, Black Powder Coat
4801-LB32D Included, Satin Stainless Steel
4801-LBDKBZ Included, Dark Bronze Powder Coat
4801-LBBLK Included, Black Powder Coat
4801-LBUS4 Included, Satin Brass
4801-LBUS10 Included, Satin Bronze
4801-LB32 Included, Polished Stainless Steel
4801-LBUS3 Included, Bright Brass
4801-32D Not Included, Satin Stainless Steel
4801-DKBZ Not Included, Dark Bronze Powder Coat
4801-32 Not Included, Polished Stainless Steel
4801-US4 Not Included, Satin Brass
4801-US10 Not Included, Satin Bronze
4801-US3 Not Included, Bright Brass
