Reduced price! Von Duprin 33A/3547A Concealed Vertical Rod Device

Von Duprin

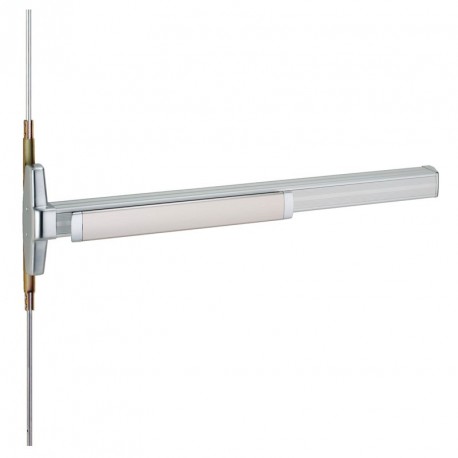

Von Duprin 33A/3547A Concealed Vertical Rod Device

$3,290.97

?

Details: Von Duprin 33A/3547A Concealed Vertical Rod Device

Concealed Vertical Rod Device Series 33A/3547A.

  • Device Functions Include, Exit Only, Dummy Trim, Night Latch-Key-Retract, Night Latch Optional Pull, Lever-06 Standard, Turn Lever, Thumb Turn.
  • Concealed Vertical Rod Devices are furnished at prices listed for door heights 6'8" to 8'4" on touch bar devices and up to 8'0" on crossbar devices.
  • A fluid damper decelerates the push pad on its return stroke and eliminates most noise associated with exit device operations.
  • Listed for door length 2'(2' device for 2'door), 3' (3' Device for 2'4" -3' door) 4'(4' device for 2'10" -4' door).
  • Listed for door thickness of 1'3/4"(standard), 2', 2'1/4" Wood & Metal doors.
  • Series features grooved mechanism case
  • Included 338 and 385A Strike.
  • Device Finish: US26D (Satin Chrome), US28 (Anodized Aluminum), 313 (Duranodic Dark Bronze), US10 (Satin Bronze), US4 (Satin Brass), US3 (Bright Brass), US15 (Satin Nickel), US26 (Bright Chrome), 315 (Black).
  • Cylinders are not included.

Concealed Vertical Rod Exit Device Adjustment

Von Duprin 3347A/3547A Concealed Vertical Rod Device Trims

EO DT NL NL-OP TL TL-BE L L-BE T T-BE
DT Dummy Trim NL Night Latch key retracts latchbolt NL-OP Night Latch key retracts latchbolt optional pull required TL Thumbturn TL-BE Thumbturn blank L Lever L-BE Lever blank escutcheon T Thumbturn key locks and unlocks T-BE Thumbturn always operable

Exit only

No outside trim

Dummy trim

Pull when dogged

Night latch

Key retracts latchbolt

Night latch

Key retracts latchbolt optional pull required

Thumbturn

Key Locks and Unlocks

Thumbturn - blank

Escutcheon always operable (no cylinder)

Lever

Key Locks and Unlocks

Lever Blank Escutcheon

Always Operable (No Cylinder)

Thumbturn

Key Locks and Unlocks

Thumbturn

Always Operable (No Cylinder) (behind C/Case)

Product description

3347A-EO

3547A-EO

3347A-DT

3547A-DT

3347A-NL

3547A-NL

3347A-NL-OP

3547A-NL-OP

3347A-TL

3547A-TL

3347A-TL-BE

3547A-TL-BE

3347A-L

3547A-L

3347A-L-BE

3547A-L-BE

3347A-T

3547A-T

3347A-T-BE

3547A-T-BE

Trim description -- 386DT 386NL 388 376T x 386 376T-BE x 386 360L 360L-BE 360T 360T-BE
Base size --

7-15/32" x 1-5/8"

(190x41mm)

7-15/32" x 1-5/8"

(190x41mm)

7-15/32" x 1-5/8"

(190x41mm)

7-15/32" x 1-5/8"

(190x41mm)

7-1/2" x 1-11/16" x 7/8"

(190x43mmx22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

Grip size --

8-1/2" x 4-5/16"

(216x110mm)

8-1/2" x 4-5/16"

(216x110mm)

--

8-1/2" x 4-5/16"

(216x110mm)

8-1/2" x 4-5/16"

(216x110mm)

-- -- -- --
Projection -- 2-7/16" (62mm) 2-7/16" (62mm) 1" (25mm) 1-13/16" (46mm) 2-17/16" (62mm) 3" (76mm) 3" (76mm) 1-13/16" (46mm) 1-13/16" (46mm)
ANSI function 01 02 03 03 11-12 field selectable -- 08 or 09 field selectable -- 11 or 12 field selectable --
Cylinder type -- -- Rim Rim 1-1/4" Mortise -- 1-1/4" Mortise -- 1-1/4" Mortise --
Handing -- -- Handed -- -- -- Handed/Reversible Handed/Reversible -- --
Optional trim --

x 360L-DT

x 550DT

x IVES 8190

--

x550DT

x IVES 8190 10"

x 392-6

x 392-6

--

E360L-BE

-- E360T-BE

Available Model Numbers and Combinations

Model/SKU Attributes
3347A-TL-US28-3 Turn Lever, 3', Satin Aluminum, Clear Anodized, Grooved
3547A-L-BE-US15-2 Satin Nickel, Lever - Blank Escutcheon, 2', Smooth
3347A-TL-BE-US28-3 3', Satin Aluminum, Clear Anodized, Turn Lever - Blank Escutcheon, Grooved
3347A-EO-US10B-4 Exit Only, 4', Oxidized Satin Bronze, Grooved
3547A-TL-US26-3 Turn Lever, Bright Chrome, 3', Smooth
3347A-T-US28-3 3', Satin Aluminum, Clear Anodized, Thumbturn, Grooved
3347A-DT-US10B-4 Dummy Trim, 4', Oxidized Satin Bronze, Grooved
3547A-TL-US15-2 Turn Lever, Satin Nickel, 2', Smooth
3347A-T-BE-US28-3 3', Satin Aluminum, Clear Anodized, Thumbturn - Blank Escutcheon, Grooved
3347A-NL-US10B-4 4', Oxidized Satin Bronze, Night Latch, Grooved
3547A-TL-BE-US15-2 Satin Nickel, Turn Lever - Blank Escutcheon, 2', Smooth
3347A-EO-313-3 3', Exit Only, Duranodic Dark Bronze, Grooved
3347A-NL-OP-US10B-4 4', Oxidized Satin Bronze, Night Latch Cylinder Assembly, Optional Pull, Grooved
3547A-TL-BE-US26-3 Bright Chrome, 3', Turn Lever - Blank Escutcheon, Smooth
3547A-T-US15-2 Satin Nickel, Thumbturn, 2', Smooth

View All Model Numbers and Options
