Reduced price! Von Duprin 33A/35A Rim Exit Device

Von Duprin

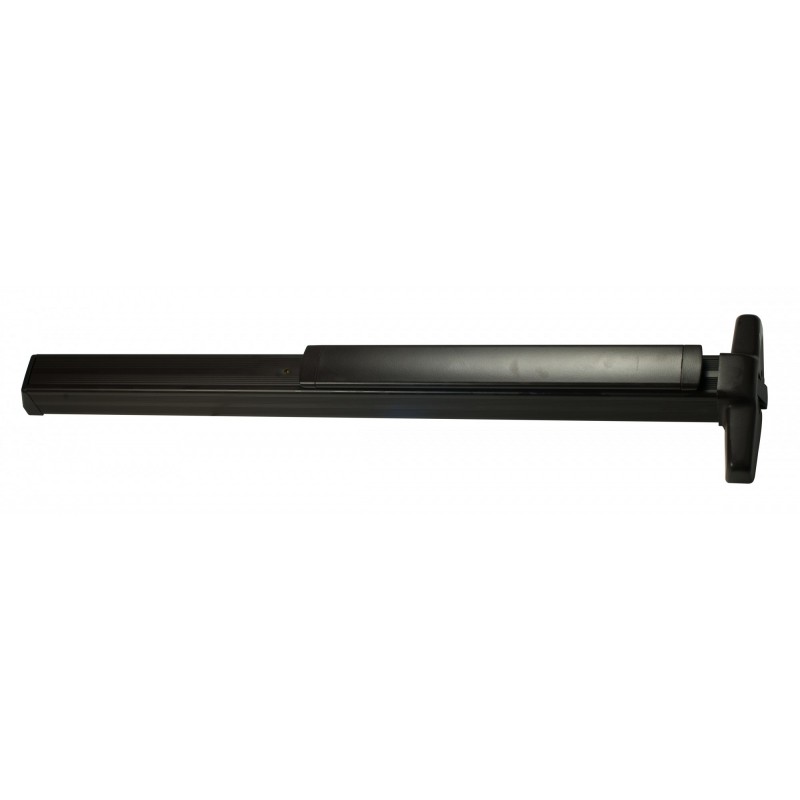

Von Duprin 33A/35A Rim Exit Device

$2,313.98

Details: Von Duprin 33A/35A Rim Exit Device

Rim Device Series 33A/35A.

  • Device Functions Include, Exit Only, Dummy Trim, Night Latch-Key-Retract, Night Latch Optional Pull, Lever-06 Standard, Turn Lever, Thumb Turn.
  • 35A Series features smooth mechanism case
  • 33A Series features grooved mechanism case
  • Device Finish: US26D (Satin Chrome), US28 (Anodized Aluminum), 313 (Duranodic Dark Bronze), US10 (Satin Bronze), US4 (Satin Brass), US3 (Bright Brass), US15 (Satin Nickel), US26 (Bright Chrome), 315 (Black).
  • 425 Sex Bolts (Supplied) 2, For Latches 325 Sex Bolts (Supplied) 4.
  • Listed for door length 2'(2' device for 2'door), 3' (3' Device for 2'4" -3' door) 4'(4' device for 2'10" -4' door).
  • Listed for door thickness of 1'3/4"(standard), 2', 2'1/4" Wood & Metal doors.
  • A fluid damper decelerates the push pad on its return stroke and eliminates most noise associated with exit device operations.
  • Includes 1439 Strike.
  • Standard trim, strike(s) and sex bolts included. Cylinders are not included.

Von Duprin 33A/35A Rim Device Trim

EO DT NL NL-OP L L-BE T T-BE
DT Dummy Trim NL Night latch key retracts latchbolt NL-OP Night latch key retracts latchbolt optional pull required L Lever key locks and unlocks L-BE Lever blank escutcheon always operable (no cylinder) T Thumbturn key locks and unlocks T-BE Thumbturn Always operable (no cylinder)

No outside trim

Exit only

Dummy trim

Pull when dogged

Night latch

Key retracts latchbolt

Night latch

Key retracts latchbolt optional pull required

Lever

Key Locks and Unlocks

Lever Blank Escutcheon

Always Operable (No Cylinder)

Thumbturn

Key Locks and Unlocks

Thumbturn

Always Operable (No Cylinder)

Product description

33A-EO

35A-EO

33A-DT

35A-DT

33A-NL

35A-NL

33A-NL-OP

35A-NL-OP

33A-L

35A-L

33A-L-BE

35A-L-BE

33A-T

35A-T

33A-T-BE

35A-T-BE

Trim description -- 386DT 386NL 388 360L 360L-BE 360T 360T-BE
Base size --

7-15/32" x 1-5/8"

(190x41mm)

7-15/32" x 1-5/8"

(190x41mm)

7-1/2" x 1-11/16"

(190x43mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

Grip size --

8-1/2" x 4-15/16"

(216x110mm)

8-1/2" x 4-15/16"

(216x110mm)

-- -- -- -- --
Projection -- 2-7/16" (62mm) 2-7/16" (62mm) 1" (25mm) 3" (76mm) 3" (76mm) 1-13/16" (46mm) 1-13/16" (46mm)
ANSI function 01 02 03 03 08 or 09 field selectable -- 11 or 12 field selectable --
Cylinder type -- -- Rim Rim 1-1/4" Mortise -- 1-1/4" Mortise --
Handing -- -- Handed -- Handed/Reversible Handed/Reversible -- --
Optional trim --

x360L-DT

x550DT

x IVES 8190

--

x550DT

x IVES 8190 10"

-- E360L-BE -- E360T-BE

Von Duprin 33A/35A Rim Fire Exit Device Trim

EO NL NL-OP L L-BE T T-BE
NL night latch NL-OP night latch optional pull required L lever L-BE lever blank escutcheon T thumbturn T-BE thumbturn always operable

No outside trim

Exit only

Night latch

Key retracts latchbolt

Night latch

Key retracts latchbolt optional pull required

Lever

Key Locks and Unlocks

Lever Blank Escutcheon

Always Operable (No Cylinder)

Thumbturn

Key Locks and Unlocks

Thumbturn

Always Operable (No Cylinder)

Product description

33A-EO-F

35A-EO-F

33A-NL-F

35A-NL-F

33A-NL-OP-F

35A-NL-OP-F

33A-L-F

35A-L-F

33A-L-BE-F

35A-L-BE-F

33A-T-F

35A-T-F

33A-T-BE-F

35A-T-BE-F

Trim description -- 3386NL 388 360L 360L-BE 360T 360T-BE
Base size --

7-15/32" x 1-5/8"

(190x41mm)

7-1/2" x 1-11/16"

(190x43mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

Grip size --

8-1/2" x 4-5/16"

(216x110mm)

-- -- -- -- --
Projection -- 2-7/16" (62mm) 1" (25mm) 3" (76mm) 3" (76mm) 1-13/16" (46mm) 1-13/16" (46mm)
ANSI function 01 03 03 08 or 09 field selectable -- 11 or 12 field selectable --
Cylinder type -- Rim Rim 1-1/4" Mortise -- 1-1/4" Mortise --
Handing -- Handed -- Handed/Reversible Handed/Reversible -- --
Optional trim -- --

x550DT

x IVES 8190 10"

--

E360L-BE

-- E360T-BE

Available Model Numbers and Combinations

Model/SKU Attributes
33AT-BE-US10-3 3', Oxidized Satin Bronze, Thumbturn - Blank Escutcheon, Grooved
35ANL-US4-3 3', Brass, Night Latch, Smooth
35ALDT-643E-4 Aged Bronze, 4', Lever, Rigid - Dummy Trim, Smooth
33AEO-US4-3 3', Brass, Exit Only, Grooved
35ANL-OP-US4-3 3', Brass, Night Latch Cylinder Assembly, Optional Pull, Smooth
33ADT-US4-3 3', Brass, Dummy Trim, Grooved
35AL-US4-3 3', Brass, Lever (Classroom), Smooth
33ANL-US4-3 3', Brass, Night Latch, Grooved
35AL-BE-US4-3 3', Brass, Lever - Blank Escutcheon, Smooth
33ANL-OP-US4-3 3', Brass, Night Latch Cylinder Assembly, Optional Pull, Grooved
35ALDT-US4-3 3', Brass, Lever, Rigid - Dummy Trim, Smooth
33AL-US4-3 3', Brass, Lever (Classroom), Grooved
35ATL-US4-3 Turn Lever, 3', Brass, Smooth
33AL-BE-US4-3 3', Brass, Lever - Blank Escutcheon, Grooved
35ATL-BE-US4-3 3', Brass, Turn Lever - Blank Escutcheon, Smooth

View All Model Numbers and Options
